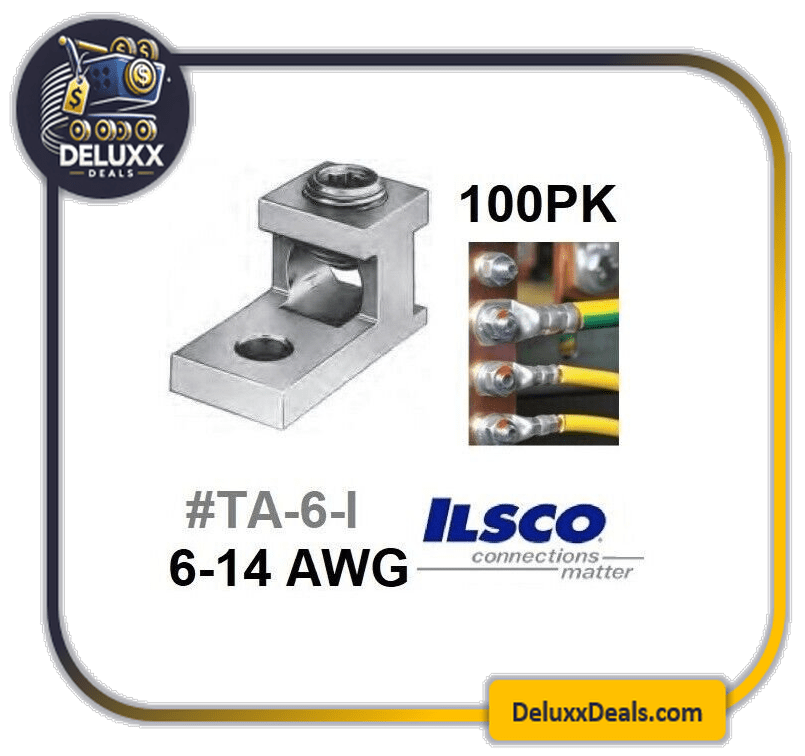

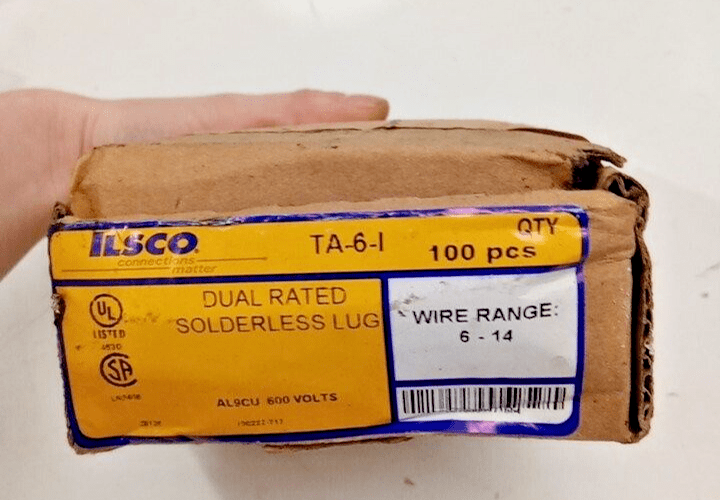

⚡ Ilsco ClearChoice Dual-Rated Solderless Lug (6-14 AWG)
The Ilsco ClearChoice Solderless Lug is a high-strength, versatile electrical connector designed for reliable performance with both copper and aluminum conductors. Manufactured from 6061-T6 aluminum alloy, this lug features an efficient I-beam construction that ensures low contact resistance and maximum structural integrity while using less material.
It is an ideal solution for termination in panels, switchgear, and various electrical enclosures where a secure, mechanical connection is required without the need for soldering.
Key Features
Dual Rated (AL9CU): Suitable for use with both Aluminum (Al) and Copper (Cu) conductors, providing flexibility for diverse electrical projects.
High-Strength Construction: Made from 6061-T6 aluminum alloy, offering excellent conductivity and resistance to mechanical stress.
Electro-Tin Plated: The finish provides low contact resistance and provides superior protection against corrosion and oxidation.
Compact I-Beam Design: Maintains high performance standards while reducing the physical footprint, making it easier to install in tight spaces.
ClearChoice Series: Part of Ilsco’s trusted line of connectors, meeting rigorous safety standards including UL 486A and UL 486B.
Technical Specifications
| Specification | Details |
| Brand / Sub Brand | Ilsco / ClearChoice |
| Conductor Range | 6 – 14 AWG |
| Voltage Rating | 600 Volts |
| Temperature Rating | 90°C |
| Mounting Hole Size | 0.203 in |
| Bolt Size | 0.206 in |
| Dimensions | 0.82″ L x 0.437″ W x 0.44″ H |
| Certifications | UL 486A/B, UL E6207, CSA LR5465, RoHS |
Installation Note
When working with aluminum conductors, it is best practice to use an anti-oxidant joint compound (such as Ilsco De-Ox) on the wire before insertion. This ensures the connection remains stable and prevents the buildup of aluminum oxide, which can increase resistance over time.
