American Electrical DIN Rail Mounted CDC40-12 Relay Contactor
The American Electrical CDC40-12 is a heavy-duty 3-pole contactor designed for reliable switching in industrial and commercial applications. Built to handle high-demand loads like motors and large lighting arrays, this contactor offers a high current rating of 60A in a compact, 45mm wide DIN rail mounted package.
With a 12V coil, this unit is ideal for systems where low-voltage control circuits manage high-voltage power distribution. It features built-in auxiliary contacts (2NO and 2NC) for easy integration into complex control logic or status monitoring systems.
Key Features
High Load Capacity: Rated for 60A continuous current, making it suitable for NEMA Size 1 motor starting and heavy-duty lighting circuits.
Low Voltage Control: Designed with a 12V coil, allowing for safe control from low-voltage PLCs or battery-powered systems.
Auxiliary Flexibility: Comes standard with 2 Normally Open (NO) and 2 Normally Closed (NC) auxiliary contacts for signaling and interlocks.
Robust Protection: Features a rated impulse withstand voltage of 8 kV, providing superior resistance against power surges and voltage spikes.
Standard DIN Mounting: Easily snaps onto standard 35mm DIN rail for organized and quick panel assembly.

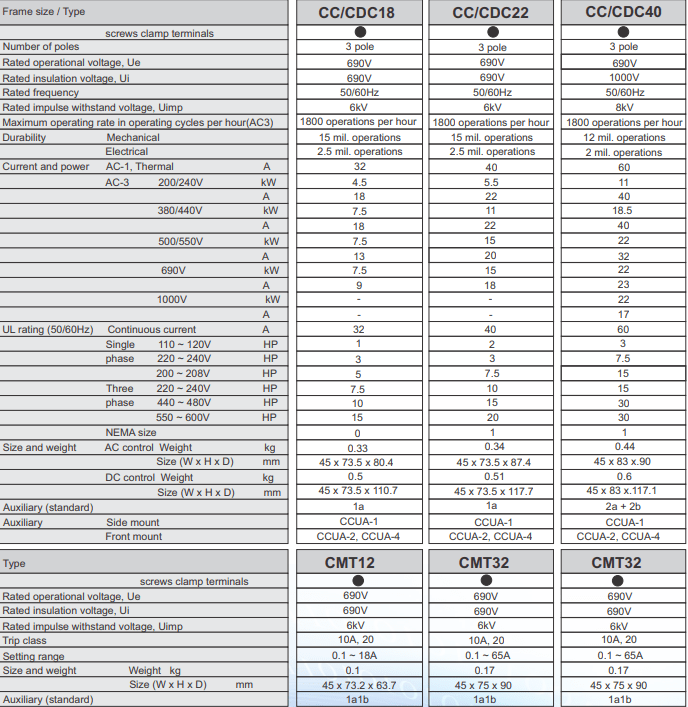

Technical Specifications
| Feature | Details |
| Model Number | CDC40-12 |
| Poles | 3-Pole (3PST) |
| UL Continuous Current | 60 Amps |
| Coil Voltage | 12V |
| NEMA Size | Size 1 |
| Auxiliary Contacts | 2NO + 2NC |
| Frequency | 50/60 Hz |
| Impulse Voltage | 8 kV |
| Dimensions (WxHxD) | 45mm x 83mm x 117.1mm |
| Weight | 0.6 kg |
Ideal Applications
Motor Control: Starting and stopping high-current single or three-phase motors.
Industrial Lighting: Managing large-scale LED or HID lighting banks.
Automation: Acting as a power interface between a 12V control system and heavy machinery.
HVAC Systems: Controlling compressors and large blowers.
