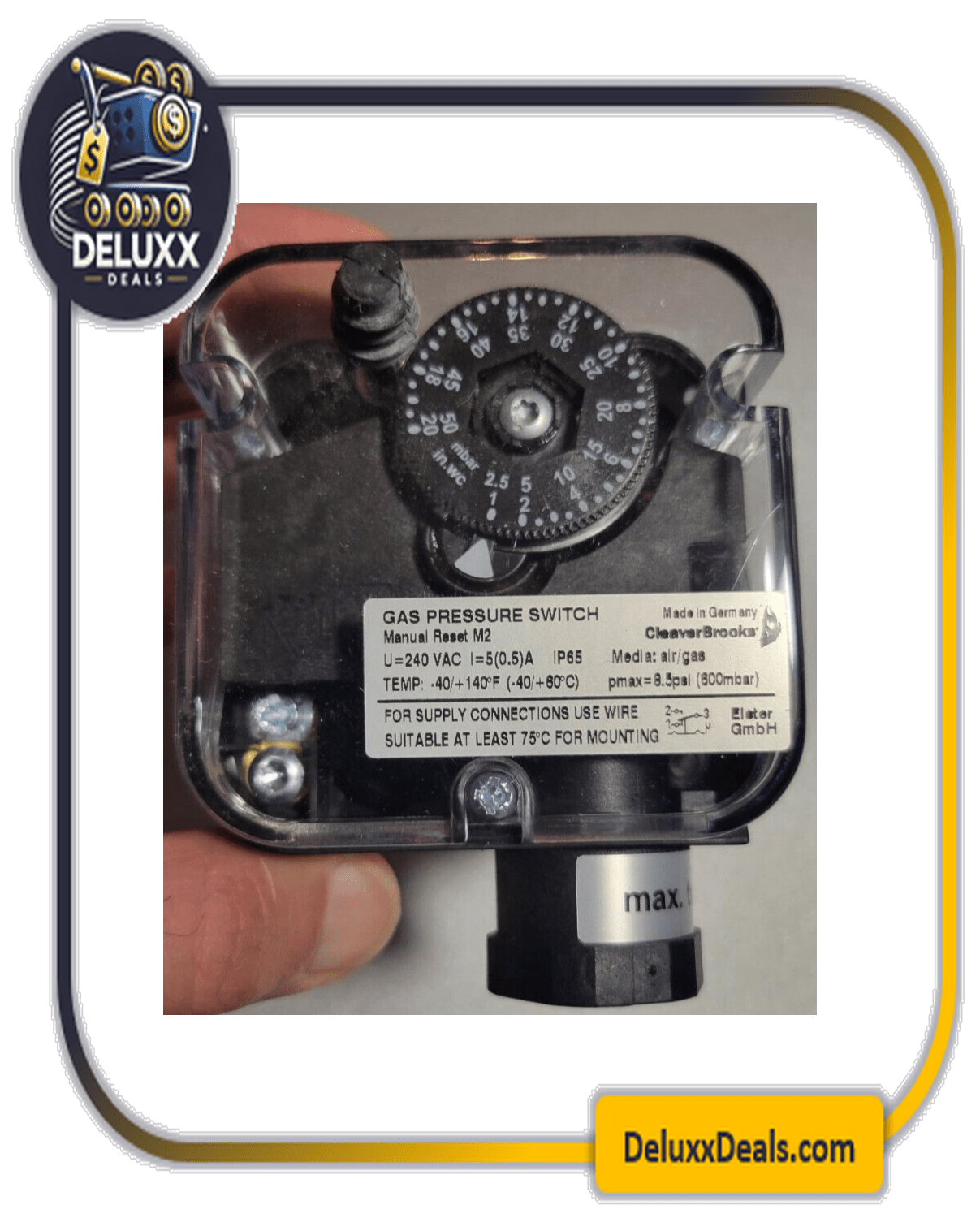

Cleaver-Brooks by Honeywell C6097A3013 Gas Pressure Switch
The Honeywell C6097A3013 (Cleaver-Brooks PN: 817-05625-000) is a professional-grade safety device designed to monitor gas or air pressure in industrial combustion systems. This high-precision switch is engineered to detect pressure drops and trigger a safety shutdown or alarm if the pressure falls below your designated setpoint.
Equipped with a Manual Reset, this model acts as a “lockout” safety device. If a low-pressure condition occurs, the system will remain disabled until a technician inspects the equipment and manually resets the switch, ensuring the root cause is addressed before operation resumes.
Key Features
Decreasing Pressure Monitoring: Specifically designed to trigger a switch-over or shut-off when pressure falls below the setpoint.
Wide Adjustment Range: Easily set your switching point between 1.0 to 20.0 inches w.c. (water column) using the integrated handwheel.
Manual Reset Security: Locks out the system upon switching to ensure maximum safety and required manual inspection.
Environmental Protection: Rated IP65, protecting the internal components against dust and water jets.
Integrated Vent Limiter: Supplied with an integral 0.2 mm nozzle that acts as a vent limiter for added safety.
Clear Visibility: Features a removable transparent cover that protects the scaleplate and adjustment knob while allowing for quick visual checks.
Safety Certified: Fully FM approved and UL listed for industrial gas and air appliances.
Technical Specifications
| Feature | Details |
| Manufacturer | Honeywell (for Cleaver-Brooks) |
| Model Number | C6097A3013 |
| Cleaver-Brooks PN | 817-05625-000 |
| Pressure Range | 1.0 to 20.0 Inches w.c. |
| Reset Type | Manual Reset |
| Switch Action | Breaks on Pressure Fall |
| Protection Class | IP65 |
| Certifications | FM Approved / UL Listed |
Ideal Applications
Boiler Systems: Monitoring burner fan pressure or main gas line pressure.
Industrial Firing: Safety interlocks for ovens, kilns, and furnaces.
HVAC/Ventilation: Differential pressure monitoring in commercial air-handling units.
Gas Trains: Low gas pressure cut-off (LGPCO) protection.
