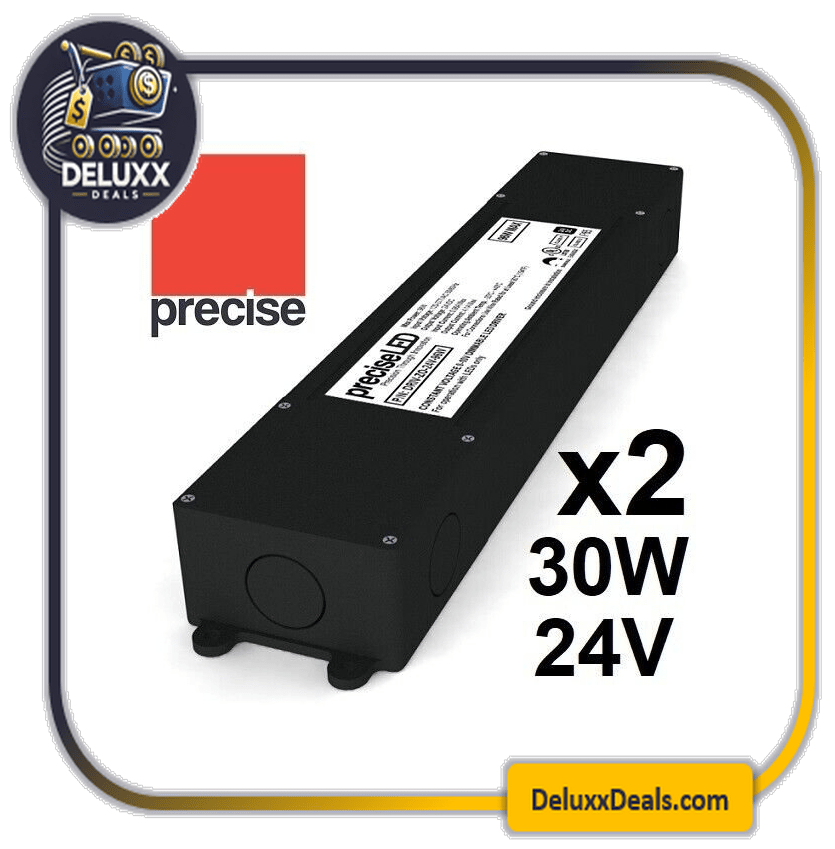

PreciseLED 2-Pack: Constant Voltage Dimmable LED Drivers (24V / 30W)
Upgrade your lighting infrastructure with this 2-pack of PreciseLED ZO Series LED Drivers. These high-performance power supplies are engineered to provide smooth, flicker-free dimming for 24V LED tape lights and fixtures. With a robust IP65 rating, they are equally suited for high-end indoor installations or demanding outdoor landscape lighting.
The ZO series is designed with the installer in mind, featuring a UL Listed enclosure with an integrated junction box that simplifies wiring for both input and output connections.
Key Features
Flicker-Free Dimming: High-quality 0-10V dimming technology allows for a smooth, linear dimming curve down to 1% without irritating strobing.
Weatherproof Versatility: Rated IP65, these drivers are protected against dust and water jets, making them perfect for kitchens, bathrooms, and outdoor architectural lighting.
Integrated Junction Box: The sleek, built-in “J-Box” eliminates the need for separate electrical boxes, providing a cleaner look and faster installation.
Advanced Protection: Equipped with auto-reset functionality for short circuits, over-load protection, and over-temperature safety.
Universal Voltage: Compatible with input voltages ranging from 120V to 277V, making them suitable for both residential and commercial projects.
Technical Specifications
| Specification | Details |
| Brand / Model | PreciseLED / DRIV-ZO-24V-30W |
| Quantity | 2 Individual Drivers |
| Output Voltage | 24V DC (Constant Voltage) |
| Wattage | 30W (per driver) |
| Input Voltage | 120-277V AC, 50/60Hz |
| Dimming Type | 0-10V (1% Minimum) |
| IP Rating | IP65 (Indoor/Outdoor Use) |
| Efficiency | >84% |
| Certifications | UL Listed (US & Canada), Class P |
Dimensions & Temperature
With Junction Box: 11.84″ L x 2.4″ W x 1.4″ H
Without Junction Box: 7.54″ L x 2.4″ W x 1.4″ H
Operating Temp: -13°F to 104°F (-25°C to 40°C)
Max Case Temp: 176°F (80°C)
Installation Tip
When calculating your load, it is a best practice to follow the 80% rule: for a 30W driver, try to keep your total LED wattage around 24W to ensure maximum longevity and prevent the driver from running at peak capacity for extended periods.
