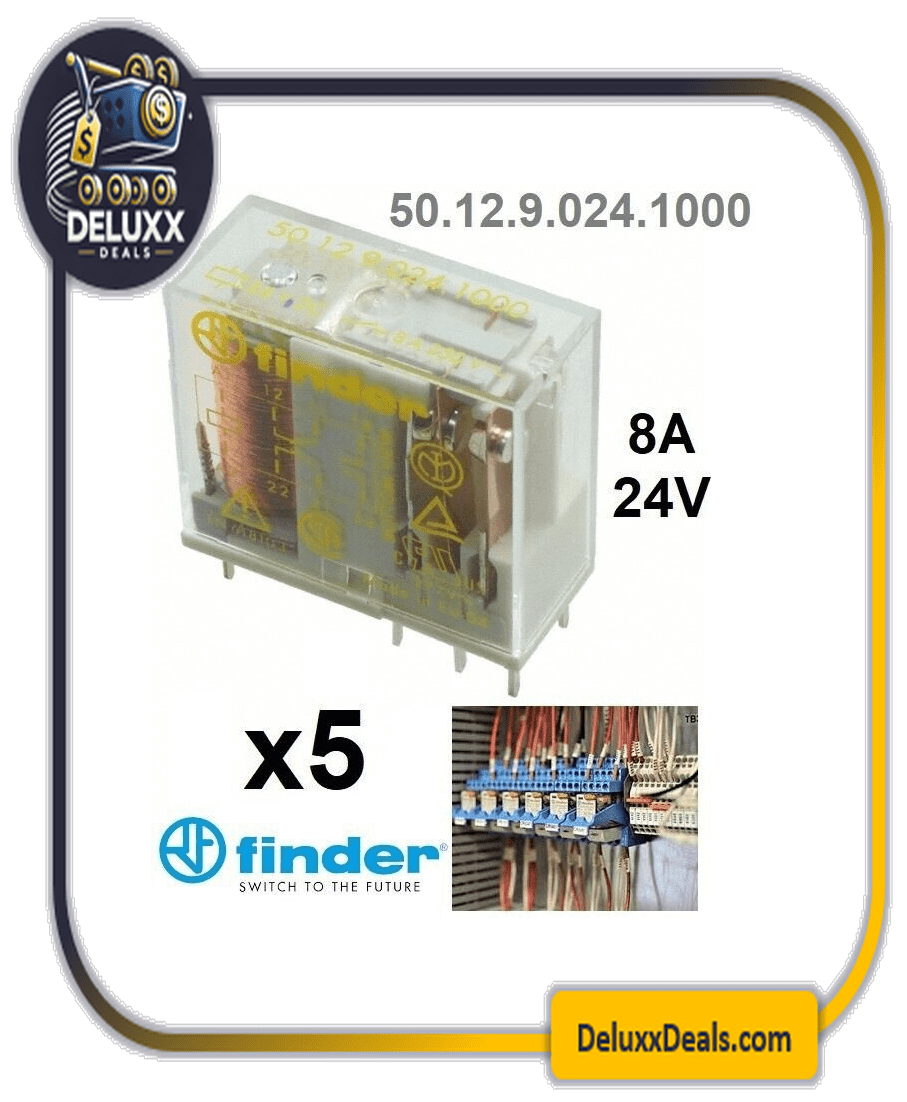

5-Pack: Finder 50.12.9.024.1000 Safety Relays (24VDC)
Enhance the safety of your control systems with this 5-pack of Finder 50.12.9.024.1000 Relays. These are specialized Force Guided Contact relays (also known as safety relays), designed specifically for applications where monitoring the state of the contacts is critical for operator and machine safety.
With a 24VDC coil and high-capacity 8A switching, these relays are ideal for safety modules, emergency stop circuits, and light curtain interfaces.
Key Features
Force Guided Contacts (Class A): Mechanically linked contacts ensure that if a Normally Open (NO) contact welds, the Normally Closed (NC) contact cannot close, allowing for reliable fault detection.
High Switching Capacity: Rated to handle up to 8A at 250VAC, making them robust enough for direct load control or interposing tasks.
Compact PCB Mounting: Designed for through-hole mounting on printed circuit boards with standard pin spacing.
Gold Plated Contacts (Standard): Engineered for high conductivity and reliable switching over a long service life.
Safety Industry Standard: Specifically designed for use in safety-related parts of control systems (EN 50205 compliant).

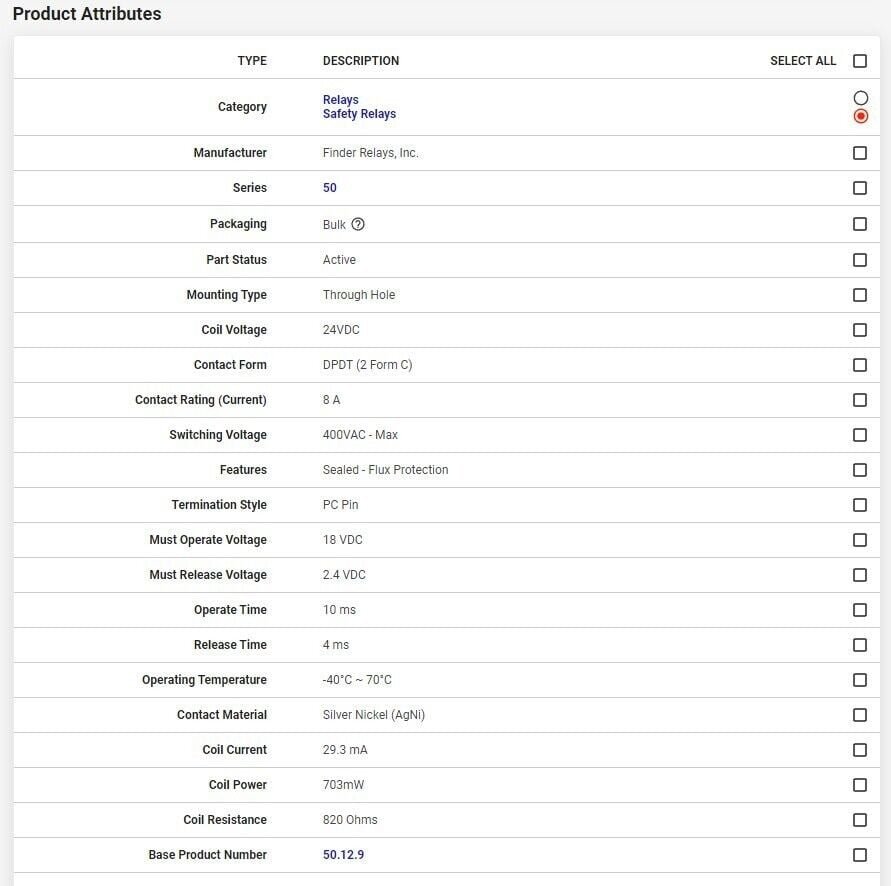

Technical Specifications
| Feature | Details |
| Brand | Finder |
| Part Number | 50.12.9.024.1000 |
| Quantity | 5 Relays Total |
| Coil Voltage | 24V DC |
| Contact Configuration | 2 Pole (DPDT / 2CO) |
| Contact Rating | 8A / 250V AC |
| Contact Material | AgNi (Silver Nickel) |
| Mounting | PCB (Through-hole) |
Safety Application Tip
Force-guided relays are a requirement in many industrial safety circuits. Because the NO and NC contacts are mechanically linked, you can use one set of contacts to switch your load and the other set as a feedback loop to your Safety PLC or monitoring relay. This allows the system to verify the relay has successfully opened or closed before allowing the machine to restart.
