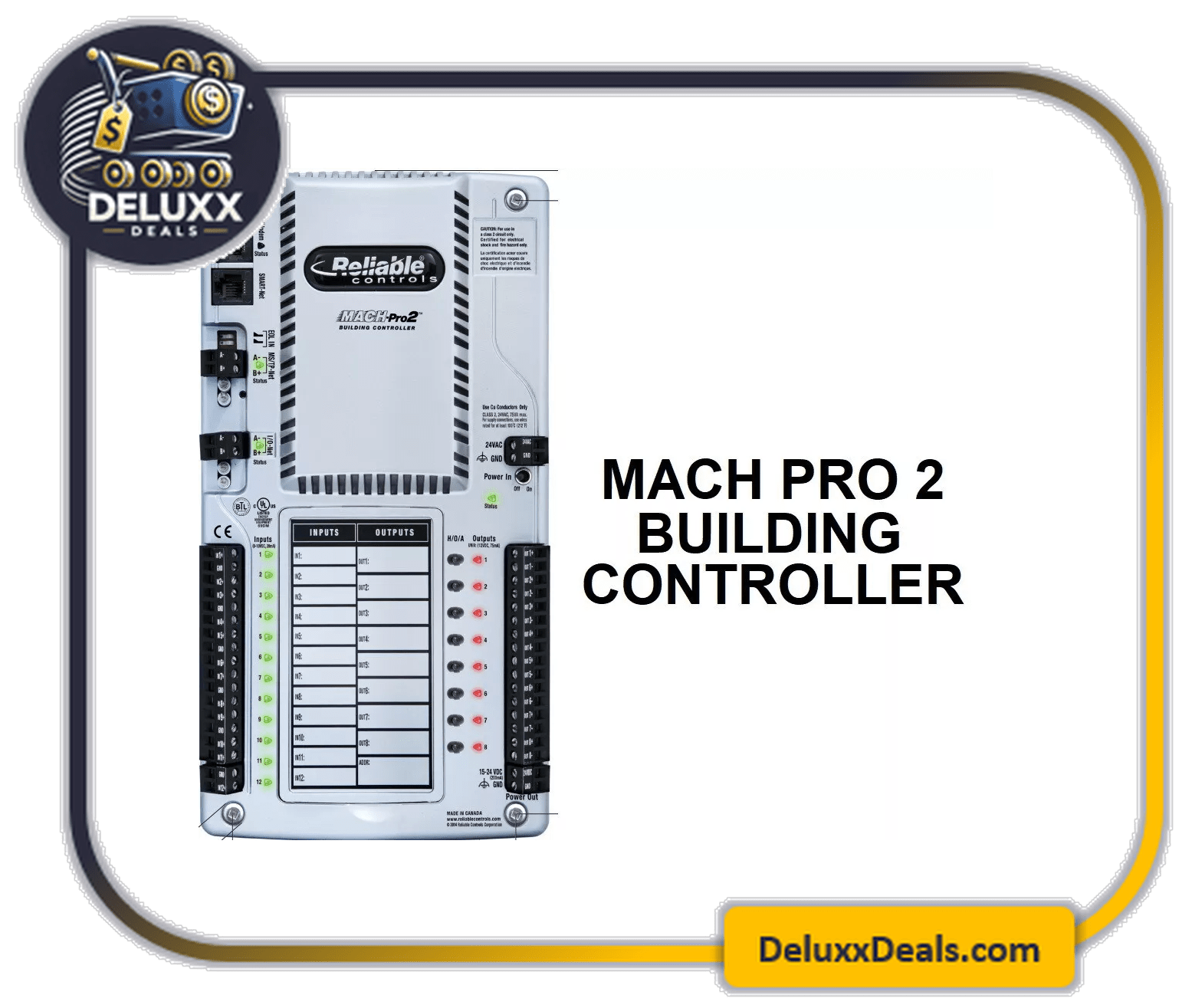

Reliable Controls MACH-Pro2™ Building Controller (MP2H)
The Reliable Controls MACH-Pro2™ (MP2H) is a high-performance, fully programmable BACnet Building Controller (BBC) designed for precision automation. Whether you are managing a large rooftop unit or a mid-sized mechanical room, this rugged “workhorse” provides the flexibility and expandability needed for modern building management systems (BMS).
Key Performance Features
Fully Programmable: Tailor your control strategies using a readable, BASIC-like language across 64 individual programs.
Universal I/O: Features 12 universal inputs and 8 universal outputs. Inputs are jumper-selectable for thermistors, dry contacts, 4-20 mA, or 0-10 VDC.
Massive Scalability: Expand your reach by adding up to three MACH-ProPoint™ modules to achieve a total of 84 inputs and 64 outputs.
Advanced Logic: Equipped with 64 control loops (P, PI, or PID) for stable closed-loop environmental control.
SMART-Net™ Ready: Includes a dedicated port to network up to 16 SMART-Sensor™ devices for localized zone control.
Technical Specifications
| Feature | Details |
| Model | MACH-Pro2™ MP2H |
| Protocol | BACnet (MS/TP and PTP) |
| Inputs | 12 Universal (Expandable to 84) |
| Outputs | 8 Universal (Expandable to 64) |
| Memory | 512 Values / 128 Arrays / 20 Scaling Tables |
| Scheduling | 32 Schedules & 64 Calendars |
| Security | 128 User Passwords with Multiple Access Levels |
| Condition | Open Box, New Condition |
Integration & Setup Tip
Expansion Capacity: If your mechanical room grows, you don’t need a new controller. The MP2H is designed for modular growth. By utilizing the expansion ports, you can increase your I/O density significantly without the cost of a full secondary controller.
