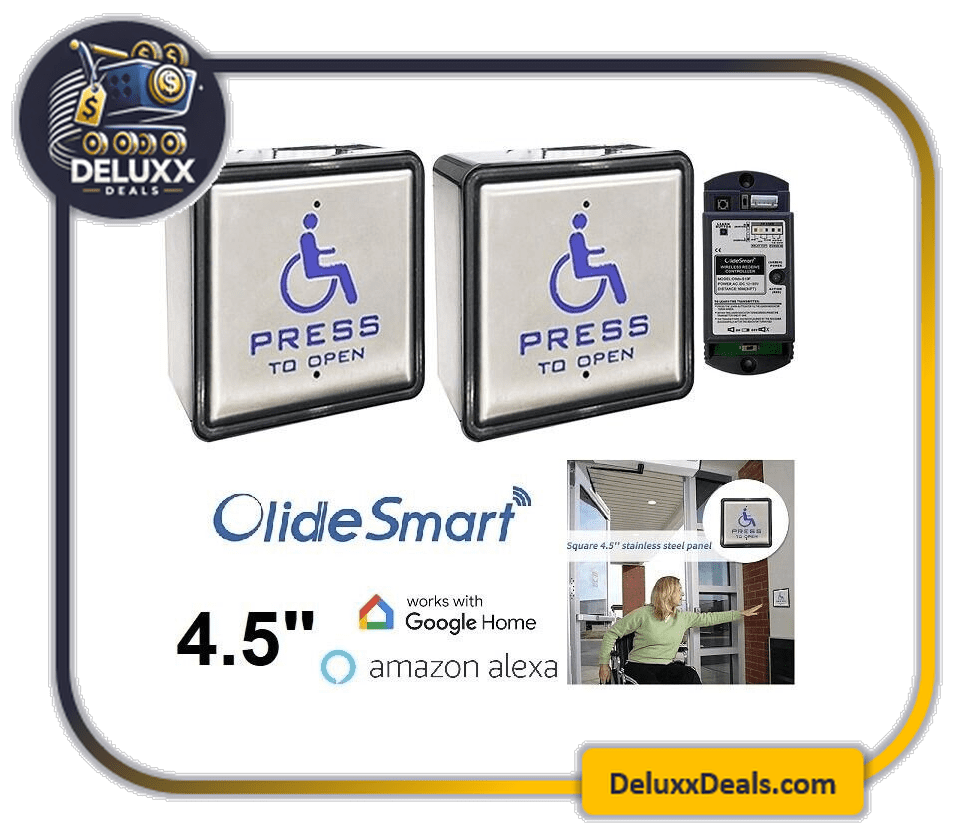

Olide-510 Wireless & Wired Stainless Steel Handicap Push Button
The Olide-510 is a professional-grade access control switch designed for automatic doors, handicap entrances, and exit points. Crafted from durable stainless steel, this switch offers the unique flexibility of both wired and wireless connectivity. This set includes the Olide-510FW Smart Receiver, enabling seamless wireless integration with electric locks and automatic door operators.
Whether for a medical facility, office building, or retail storefront, the Olide-510 provides a reliable, hygienic, and ADA-compliant solution for door automation.
Key Performance Features
Dual-Mode Connectivity: Can be hardwired for permanent installations or used wirelessly to avoid complex cable runs.
2.4G Wireless Technology: Utilizes high-frequency 2.4G communication for excellent stability and consistency between the button and the receiver.
Four-Point Trigger Design: Ensures that the door activates no matter where the panel is pressed, providing high accessibility for all users.
Universal Compatibility: Large capacity output is compatible with nearly all automatic door brands, electric strikes, and magnetic locks.
Smart Feedback: Equipped with a built-in buzzer and LED light indication to confirm a successful signal transmission to the user.
Low Power Consumption: Engineered for long battery life when used in wireless mode, reducing maintenance frequency.
Technical Specifications
| Specification | Details |
| Model | Olide-510 Button + Olide-510FW Receiver |
| Material | Brushed Stainless Steel |
| Wireless Frequency | 2.4G |
| Receiver Input Voltage | 12V to 30V DC (Wide Voltage) |
| Signal Output | 1.5-second pulse (standard for door openers) |
| Activation Type | Four-point touch trigger |
| Mounting | Surface or Flush Mount |
Installation & Application
The Olide-510FW Receiver makes this kit exceptionally easy to install. The receiver connects directly to the door controller’s power (12-30V DC), and the button can be mounted anywhere within range. This setup is ideal for retrofitting existing buildings where running new wires through walls is difficult or impossible.
