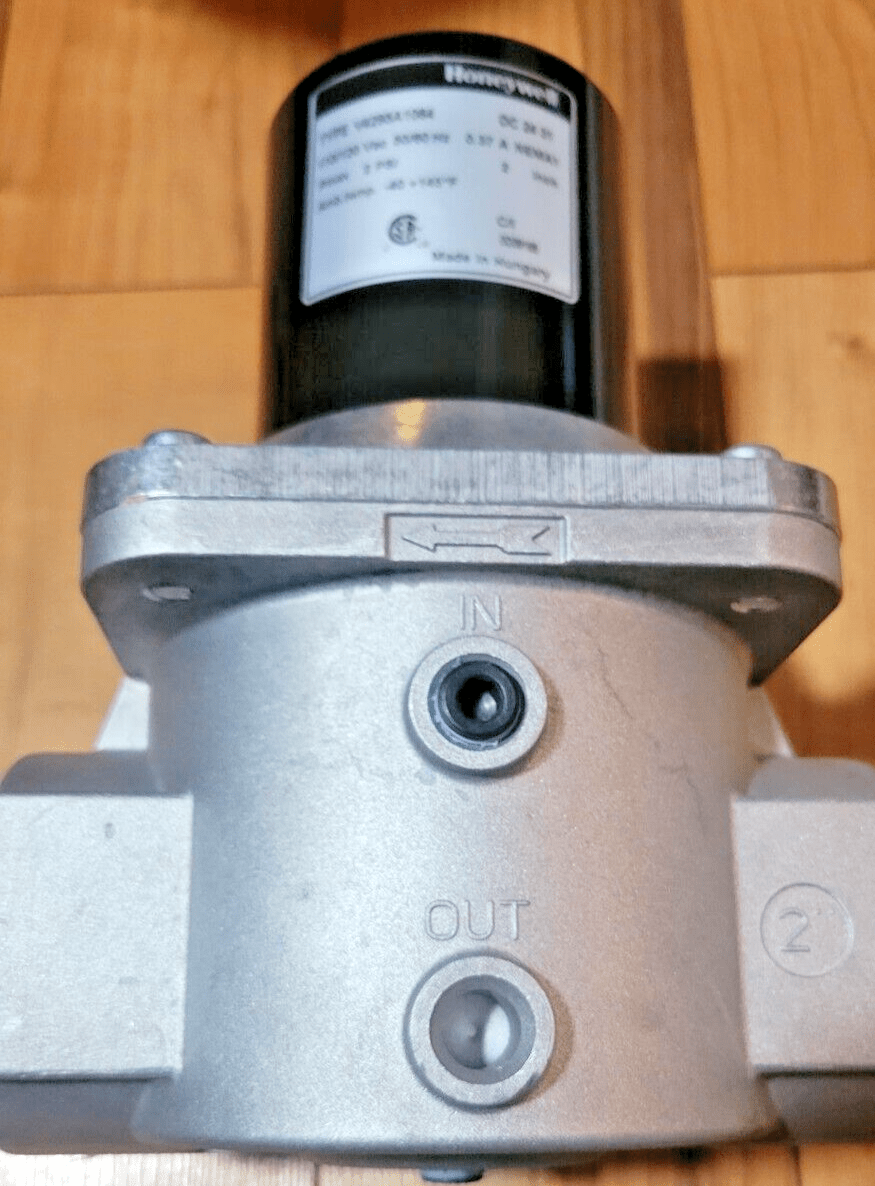

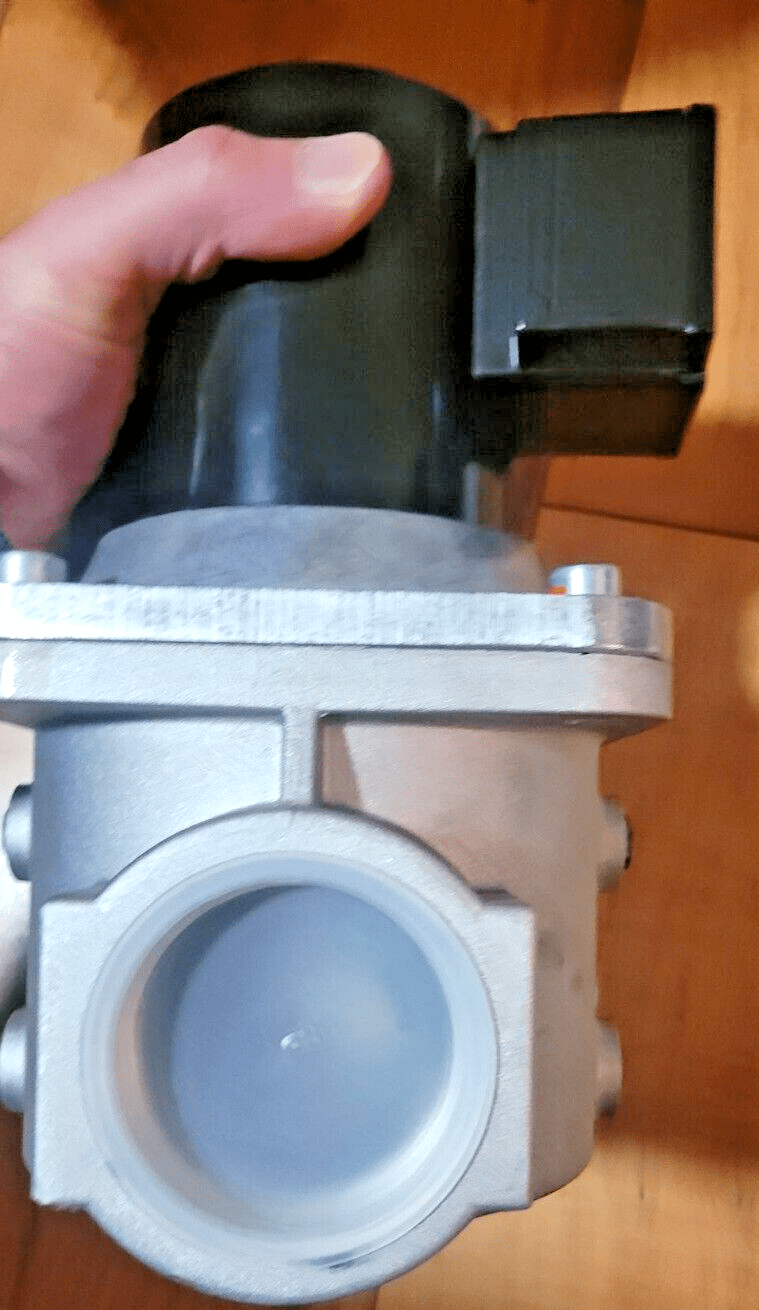

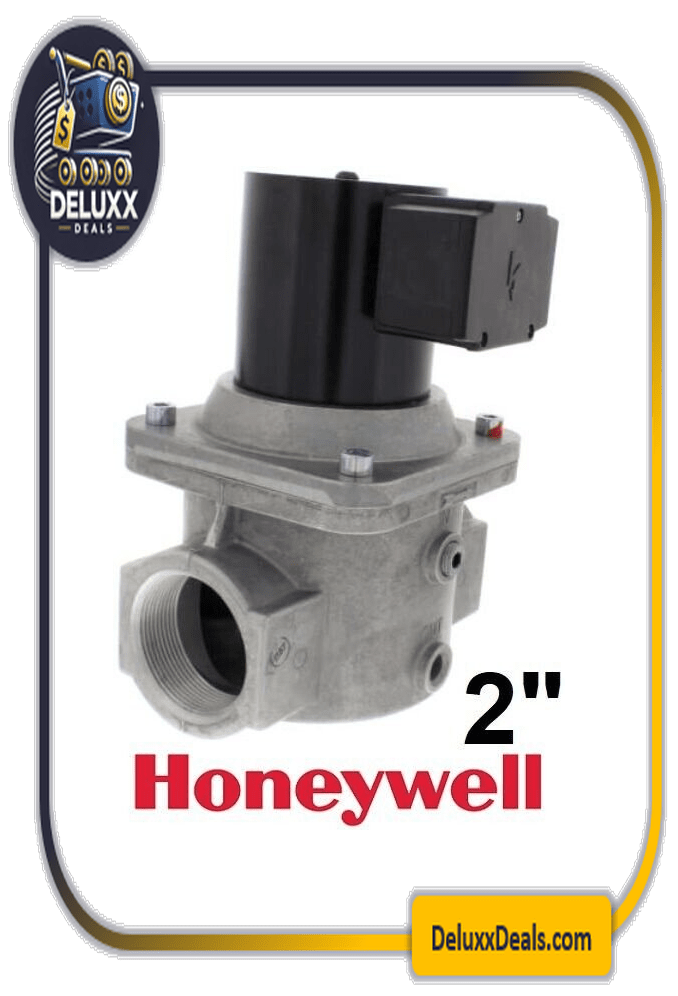

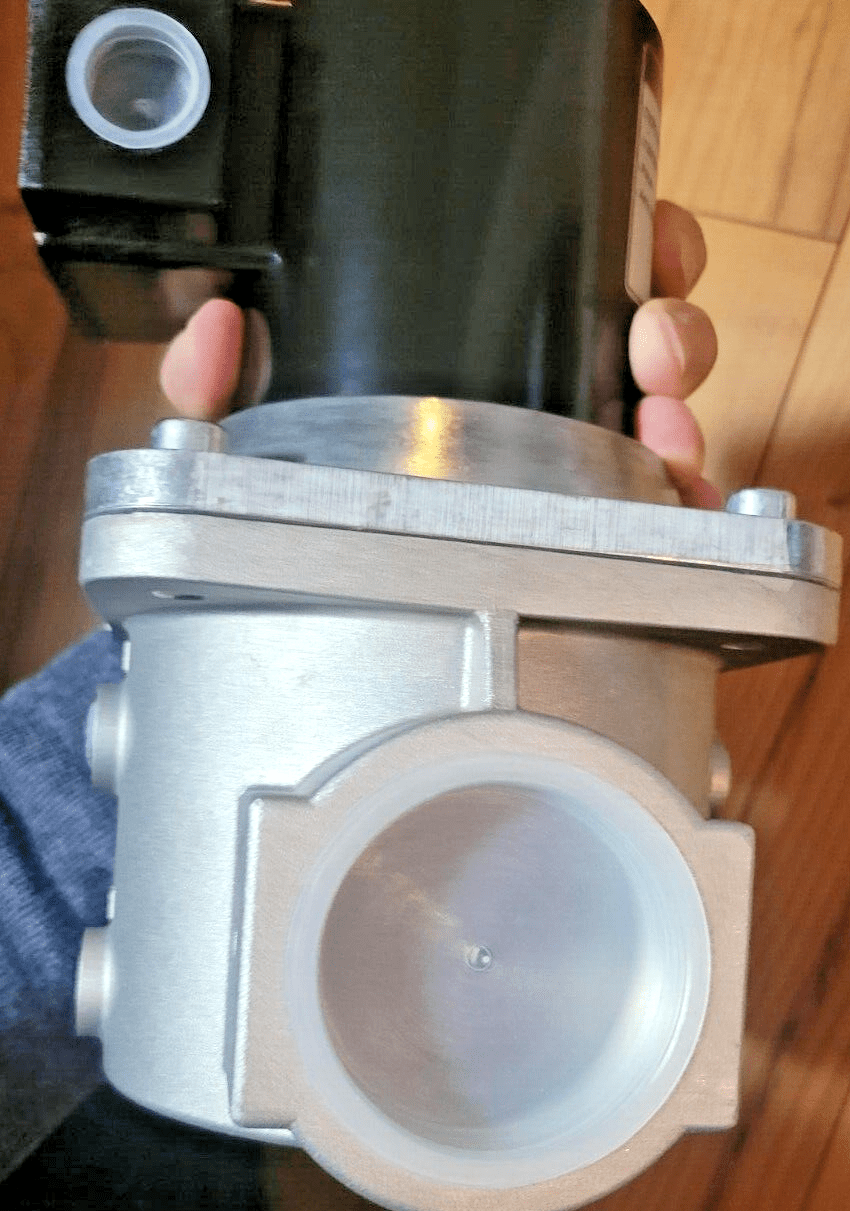

Honeywell V4295A1064 2″ Solenoid Gas Valve
The Honeywell V4295A1064 is a heavy-duty, high-capacity solenoid gas valve designed for industrial and commercial burners. This 2-inch valve provides safe, “positive close-off” control for various fuel gases, including natural gas and LP.
Operating on 110/120 VAC, it is engineered for reliability in high-demand environments, featuring a high-spring-force design that ensures the valve remains closed even against significant back pressure.
Key Performance Features
Positive Safety Shut-off: Instantly cuts off gas flow when de-energized, meeting strict safety standards for industrial heating equipment.
Superior Pressure Handling: High-value spring force allows the valve seat to withstand up to 0.7 psi of back pressure.
Consistent Performance: The valve’s ability to close is unaffected by changes or fluctuations in inlet pressure.

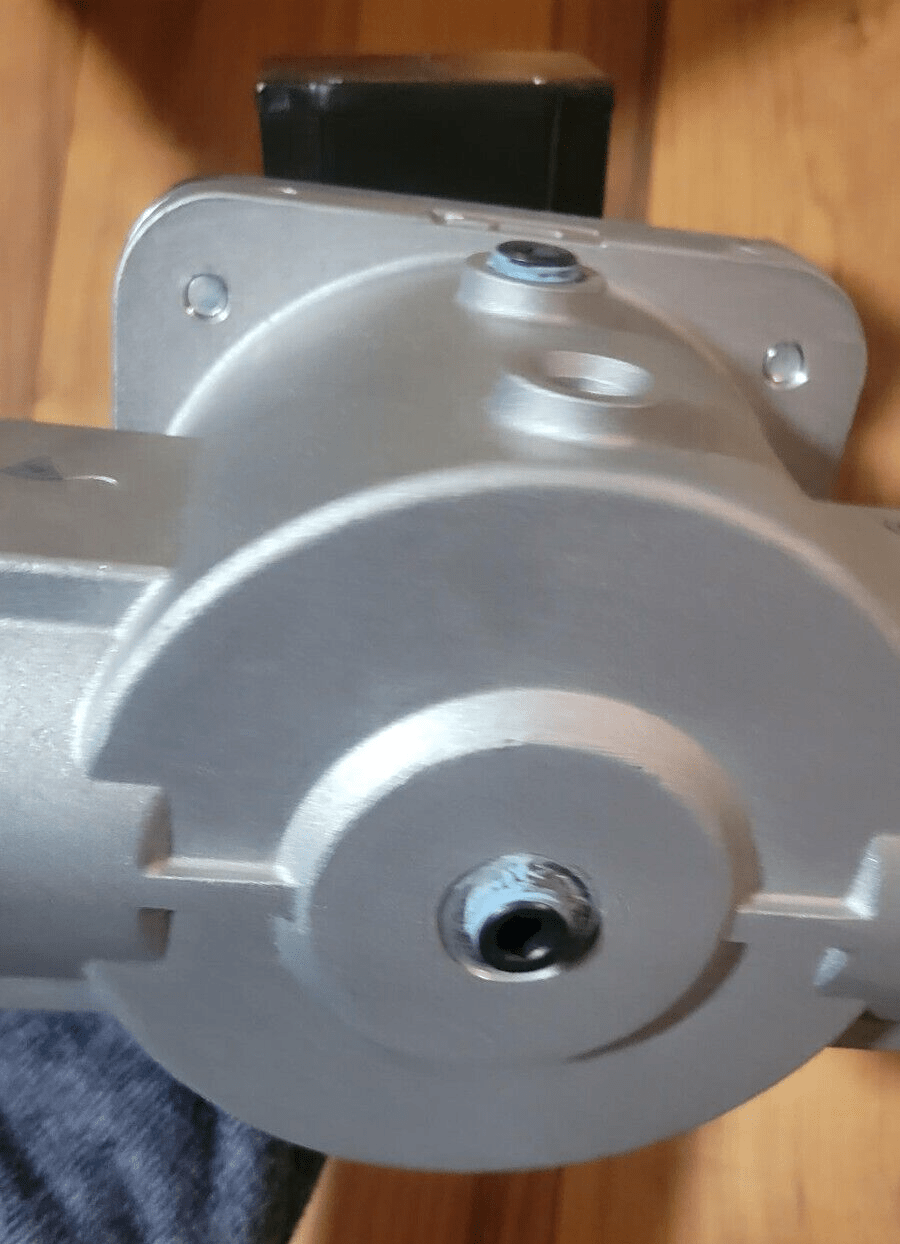

Advanced Diagnostics: Built-in upstream and downstream taps allow for easy testing of pressure points and system troubleshooting.
Quiet & Efficient: Designed for low operating noise and low in-rush current, reducing electrical strain on your controller and minimizing vibration.
Technical Specifications
| Specification | Details |
| Manufacturer | Honeywell |
| Model Number | V4295A1064 |
| Pipe Size | 2″ NPT |
| Voltage | 110/120 VAC (60 Hz) |
| Flow Capacity | 3,465 cfh (Cubic Feet per Hour) |
| Gas Compatibility | Air, Natural, Mixed, Manufactured, and LP |
| Body Pattern | Straight-Through, Non-Offset |
| Temperature Range | $-40^\circ\text{F}$ to $130^\circ\text{F}$ ($-40^\circ\text{C}$ to $50^\circ\text{C}$) |
Installation & Application
This valve is ideal for large-scale boiler systems, industrial ovens, and commercial grain dryers. Its straight-through design ensures maximum flow efficiency with minimal pressure drop across the valve.
Safety Warning: Gas valve installation and maintenance should only be performed by a licensed professional. Ensure all local codes and safety regulations are followed during installation.
