Magnetrol Eclipse 706 Guided Wave Radar Transmitter
The Eclipse Model 706 is a flagship, high-performance level transmitter designed to provide measurement accuracy far beyond traditional technologies. Based on Guided Wave Radar (GWR) technology, this loop-powered 24 VDC transmitter excels in a wide range of industrial applications—from light hydrocarbons to water-based media.
By utilizing advanced “diode switching” technology and supporting a vast array of probes, the Eclipse 706 ensures reliable level measurement even in the presence of steam, foam, or shifting dielectric constants.
Key Features & Performance
Universal Design: One universal transmitter head can be interchanged with all Magnetrol GWR probe types, simplifying inventory and maintenance.
Safety Certified: Suitable for use in critical SIL 2/3 Certified safety loops, offering the highest level of reliability for plant safety.
Advanced Diagnostics: Supports FDT/DTM and DD standards, allowing you to view real-time echo curves and diagnostic data via PACTware, AMS Device Manager, or HART communicators.

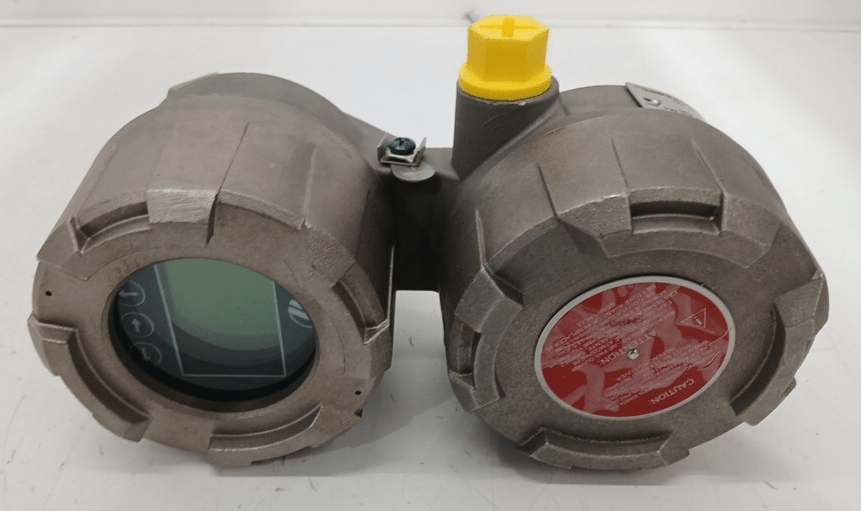

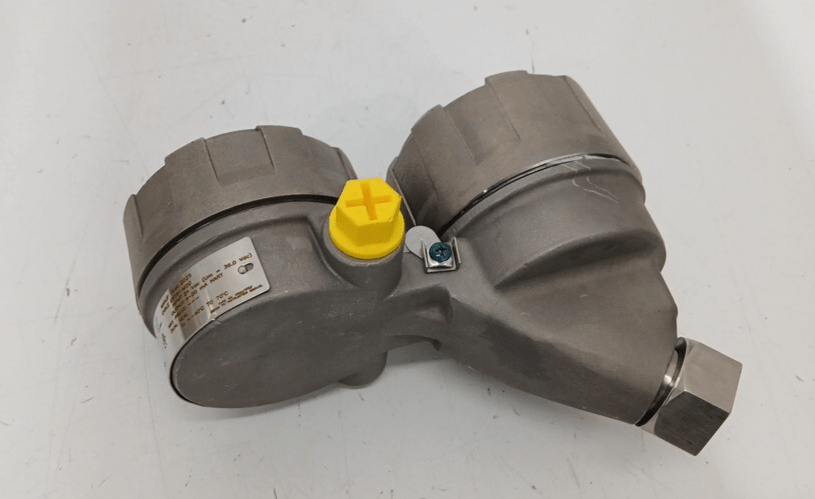

Innovative Enclosure: Features Magnetrol’s signature angled, dual-compartment enclosure for easier wiring, viewing of the graphic LCD, and isolation of electronics from the terminal compartment.
High Signal-to-Noise Ratio: Provides industry-leading signal strength, ensuring accurate measurement in turbulent or low-dielectric fluids.
Product Specifications
| Feature | Details |
| Manufacturer | Magnetrol |
| Model | Eclipse 706 |

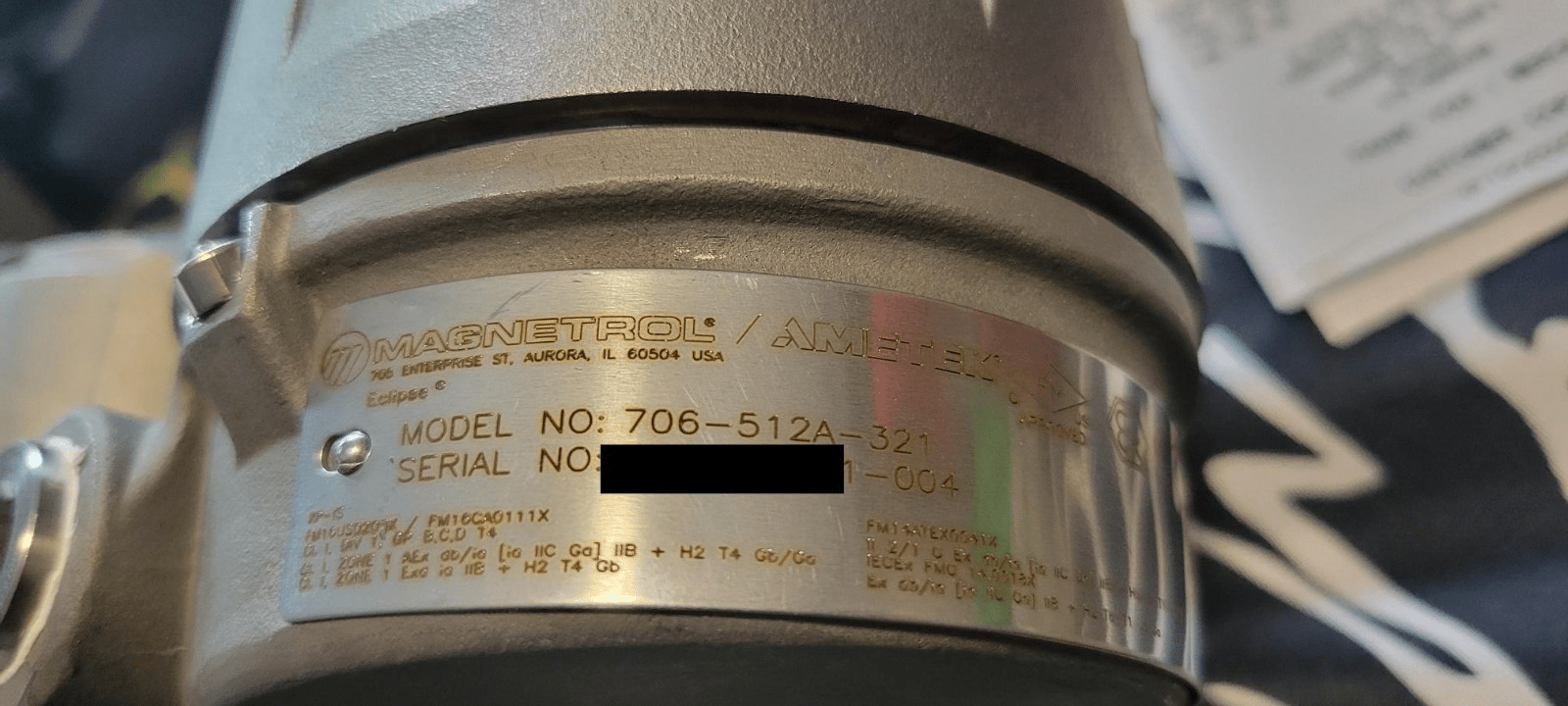

| Part Number | 706-512A-321 |

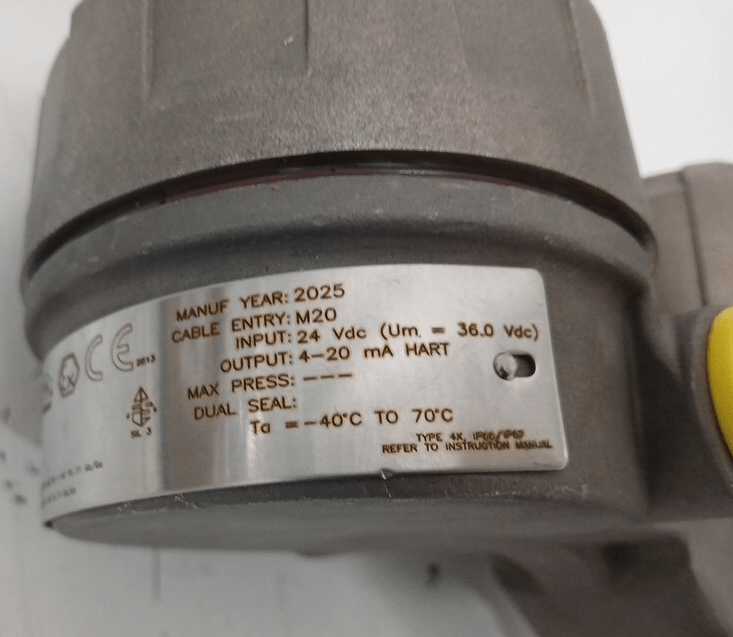

| Input Power | Loop-powered, 24 VDC |
| Technology | Guided Wave Radar (GWR) |
| Communication | HART, Foundation Fieldbus, or Profibus PA |
| Safety Rating | SIL 2/3 Capable |
