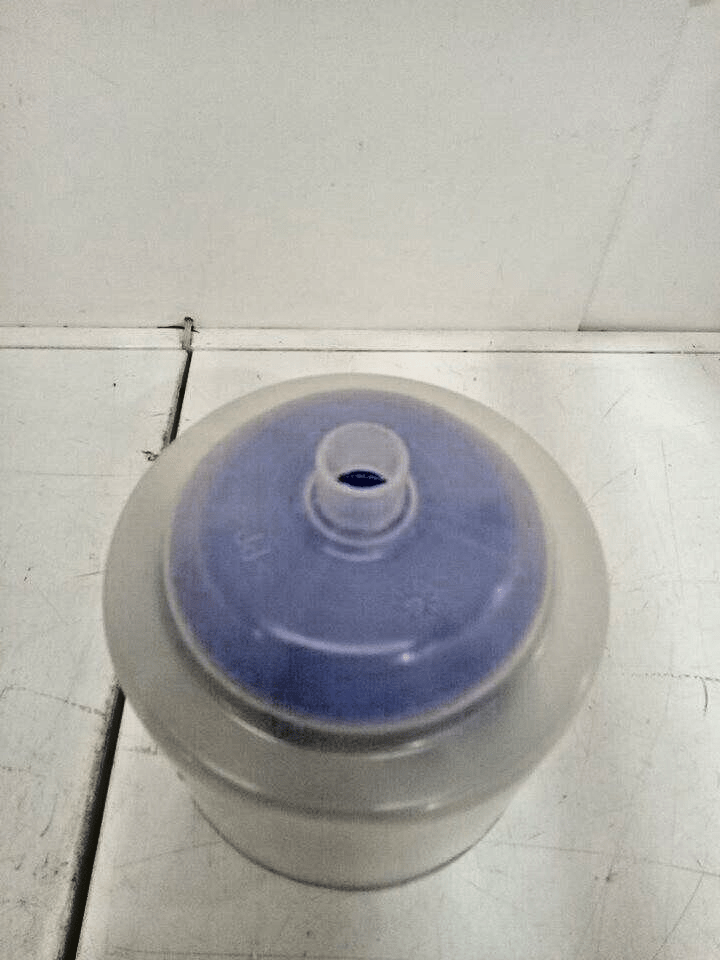

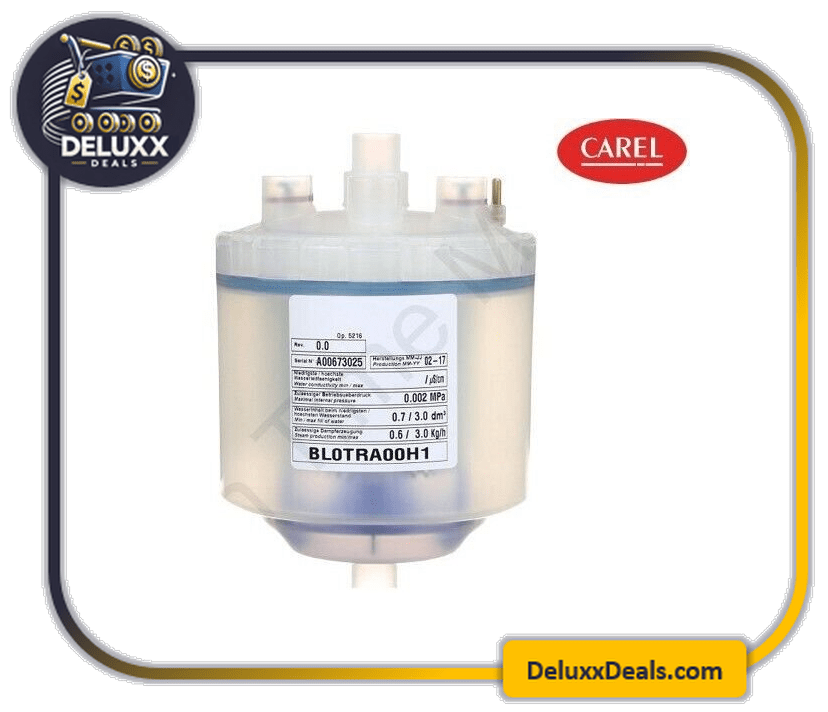

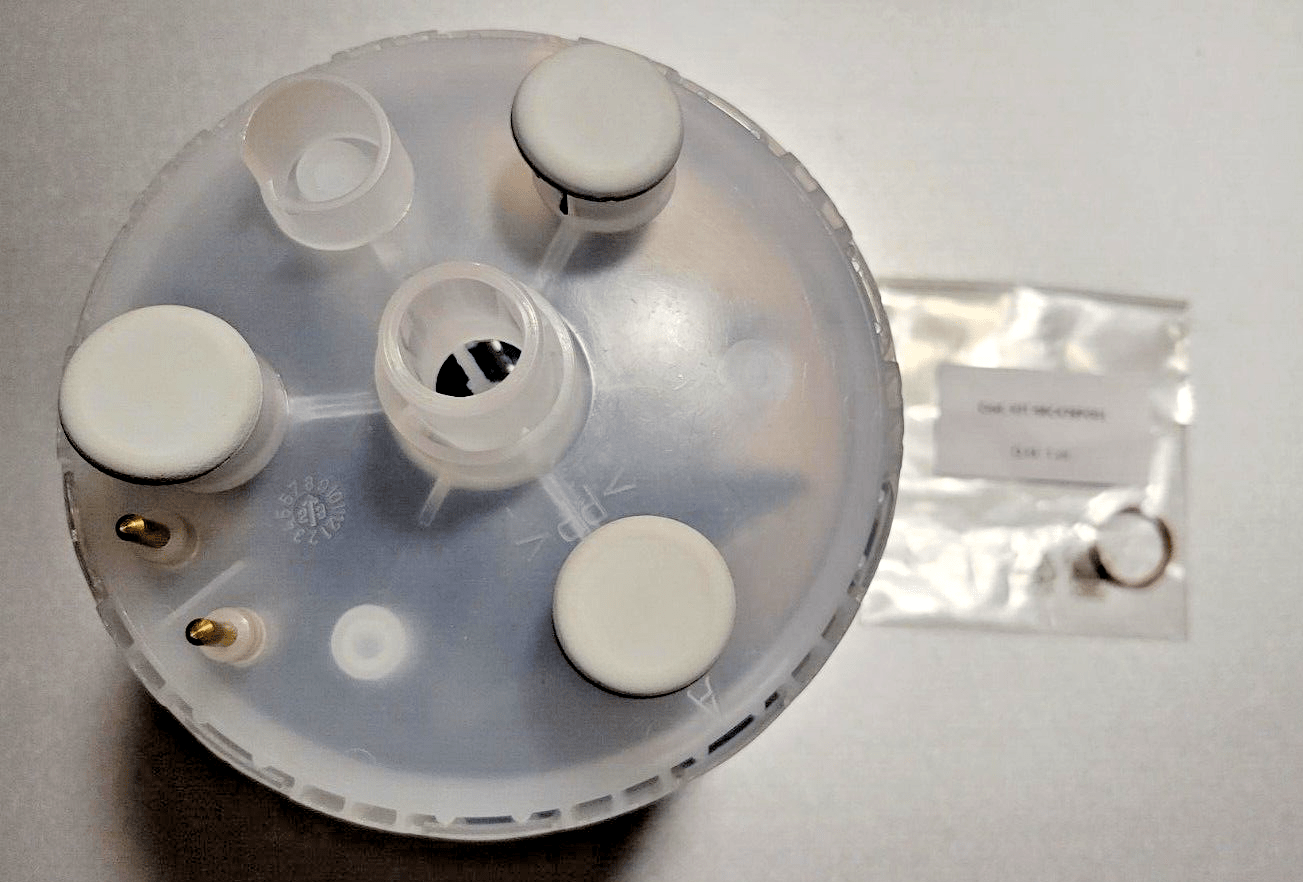

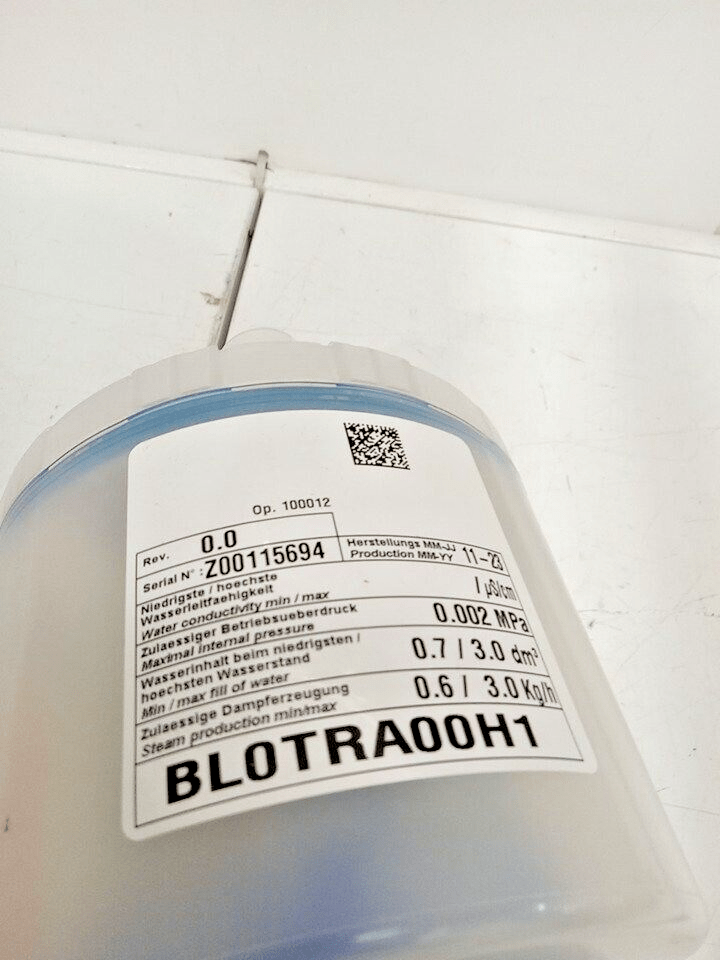

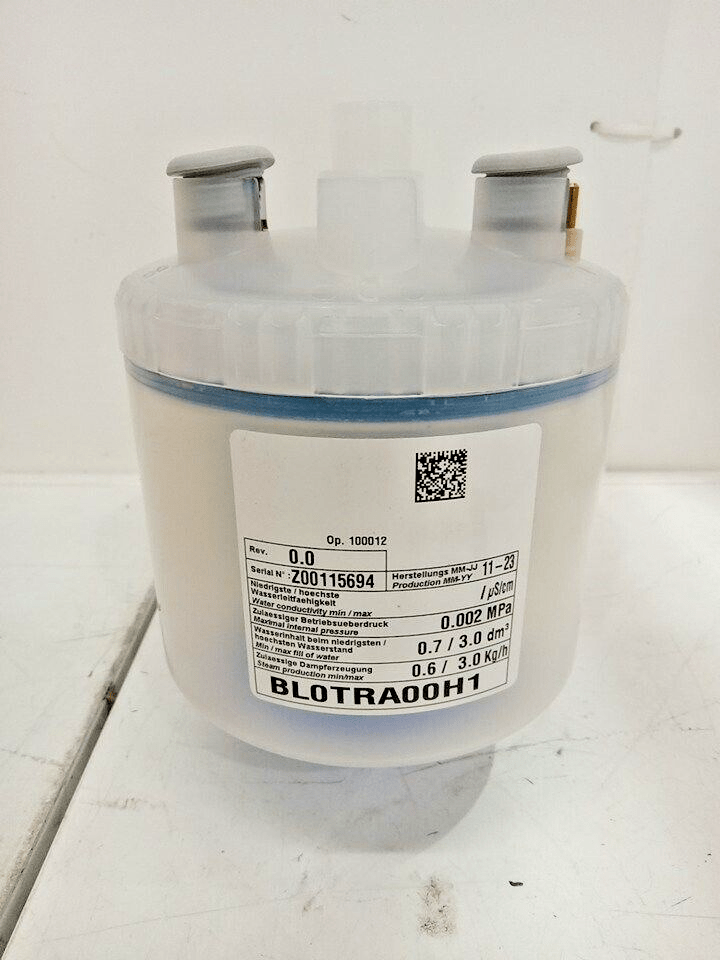

💨 Carel BL0TRA00H1 Steam Humidifier Cylinder
Keep your Carel humidifier operating at peak efficiency with the BL0TRA00H1 Replacement Cylinder. Designed for the CompactSteam series, this “Type A” disposable cylinder is the core component responsible for generating clean, hygienic steam.
This 3-phase, standard conductivity cylinder is engineered for high performance and easy maintenance, ensuring your indoor air quality remains consistent throughout the season.
Core Functionality
The cylinder utilizes the Joule effect to produce steam. By applying voltage to metal electrodes immersed in water, an electric current is created. This current heats the water to its boiling point, generating steam proportional to the water level. The system automatically manages the fill valve to maintain the precise steam output required.
Key Specifications
| Specification | Details |
| Manufacturer | Carel |
| Part Number | BL0TRA00H1 |
| Steam Output | 1–3 kg/h (2.2–6.6 lbs/h) |
| Voltage/Phase | 3-Phase (3PH) |
| Cylinder Type | Type A (Standard/Disposable) |
| Water Conductivity | Standard (HB) |
Maintenance & Replacement Schedule
The life of your cylinder depends on water quality and usage patterns. To prevent system failure or damage due to plastic aging and electrode corrosion, follow these guidelines:
Annual Replacement: The entire cylinder should be replaced at least once per year or every 2,500 operating hours.
15-Day Check: Inspect the cylinder every 300 operating hours for leaks or excessive limescale buildup.
Quarterly Review: Check general operating conditions every 1,000 hours; replace early if saturation of lime deposits is visible.
Signs You Need a New Cylinder
Reduced Steam Output: Limescale buildup on electrodes acts as an insulator, reducing efficiency.
Frequent Drain Cycles: The unit may drain more often to try and manage high mineral concentrations.
Visible Arcing or Corrosion: Any physical degradation of the internal metal electrodes.
