Thomson SSUPBA24 Super Smart Ball Bushing Bearing & Pillow Block
The Thomson SSUPBA24 is a high-performance linear motion solution combining a Super Smart Ball Bushing Bearing with a Single Adjustable Type Pillow Block. This patented assembly is engineered to provide industry-leading load capacity and travel life while ensuring smooth, quiet, and low-drag movement.
Key Performance Benefits
Superior Load & Life: These bearings offer twice the load capacity or eight times the travel life of standard Super Ball Bushing bearings.
Extreme Durability: Compared to conventional steel linear ball bushings, this product provides 6x the load capacity or 216x the L10 travel life.
Universal Self-Alignment: The self-aligning feature optimizes load distribution across all ball tracks and assures uniform loading over the entire length of the bearing plate.
Persistent Precision: A unique steel band design allows the bearing to preserve its ID fit-up and self-aligning capabilities even over extended, heavy use.

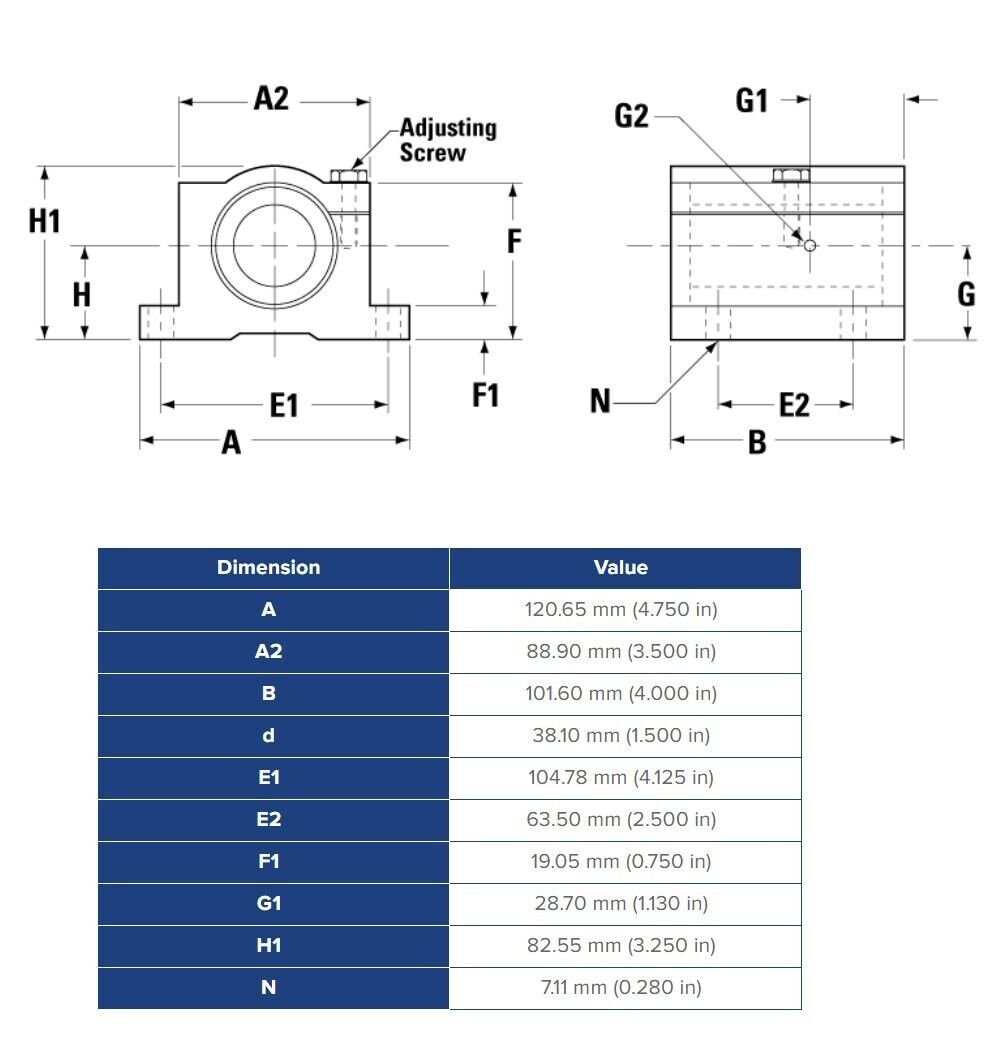

Technical Specifications
| Feature | Detail |
| Pillow Block Material | Aluminum |
| Overall Length | 4 in |
| Body Width | 3 1/2 in |
| Body Height | 2.88 in |
| Bolt Size / Hole Size | 1/4 in / 0.28 in |
| Self-Aligning / Preload | Yes / Yes |
| Recommended Shafting | Class L |
| Corrosion Resistance | Optional |
