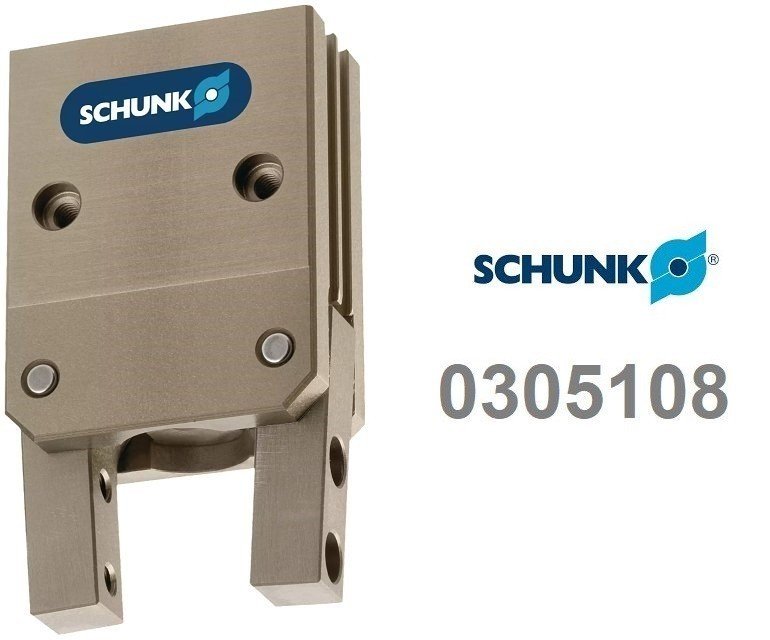

SCHUNK SWG 40 Clamping Jaw Cylinder (PN 0305108) – Angular Gripper with Spring-Supported Force, Slim Design
Enhance the precision and reliability of your automated handling tasks with the SCHUNK SWG 40 Clamping Jaw Cylinder (Part Number 0305108). This robust angular gripper is engineered by SCHUNK, a global leader in clamping and gripping systems, to provide high power transmission and secure workpiece handling in complex, space-constrained industrial environments.1
High-Performance Gripping Mechanism
The $\text{SWG 40}$ model is a specialized actuator that utilizes a proven mechanical design to ensure superior gripping performance:
- Wedge-Hook Design: Employs a reliable wedge-hook design mechanism, which ensures high power transmission and guarantees synchronized gripping of the workpiece for accurate positioning and handling.2
- Spring-Supported Force Maintenance: A critical safety feature, the spring-supported gripping force maintenance holds the workpiece securely in place even in the event of a sudden loss of pneumatic pressure, preventing costly drops and damage.3
Optimized for Integration and Space Savings
Designed with the needs of modern automated assembly lines in mind, the $\text{SWG 40}$ features a highly efficient mechanical footprint:
- Slim and Compact Design: The angular gripper is built with a light and compact design and a slim contour, making it perfect for space-saving handling and integration into crowded robotic cells without creating interfering contours.4
- Arrangement in a Row: The slim profile allows the grippers to be directly mounted in a row, maximizing the density of automation tools on a robotic arm or assembly station.
- Integrated Monitoring: Features monitoring via electronic magnetic switches housed in a slot within the body. This is a space-saving feature that provides confirmation of the jaw position (open/closed) to the master control system.
Condition and Assurance

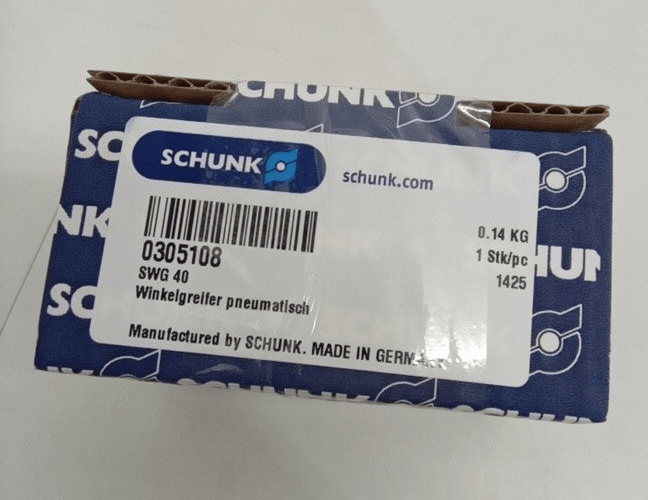

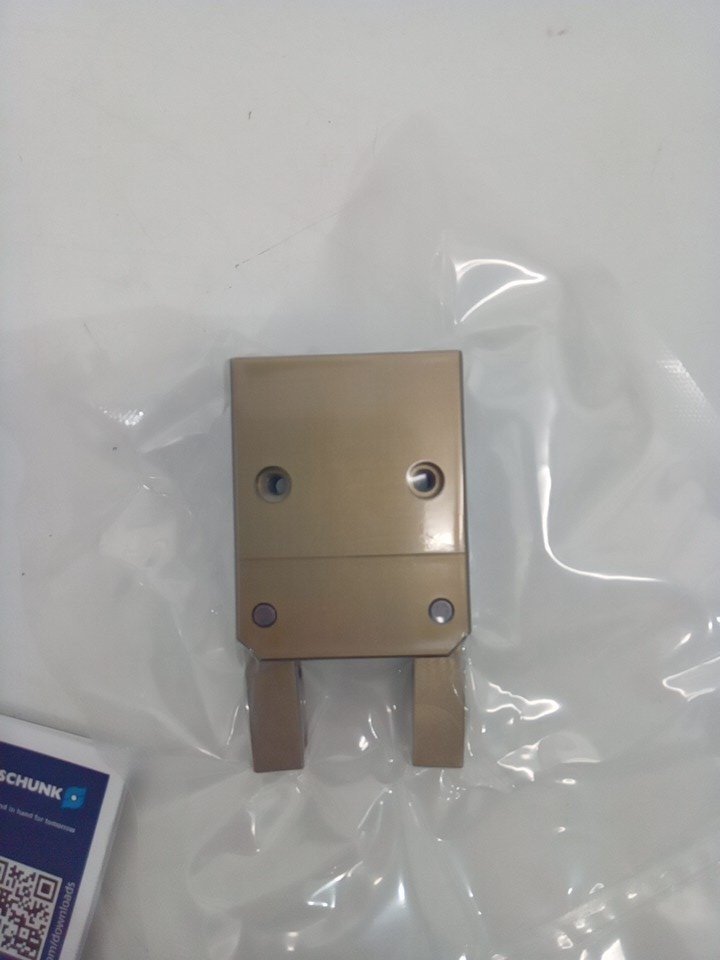

This SCHUNK SWG 40 is offered in Open Box condition with the contents sealed, ensuring the component is new and protected from environmental contaminants prior to installation.
All duties are paid by DeluxxDeals. No surprise charges!
