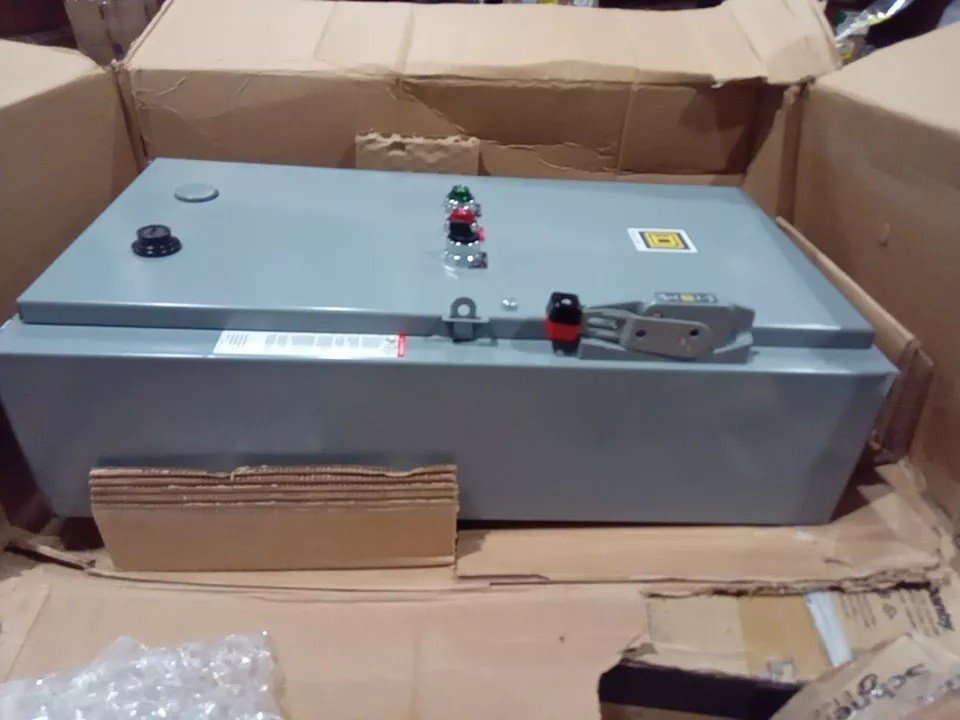

Square D 8538SCG62V02S NEMA Size 1 Combination Starter

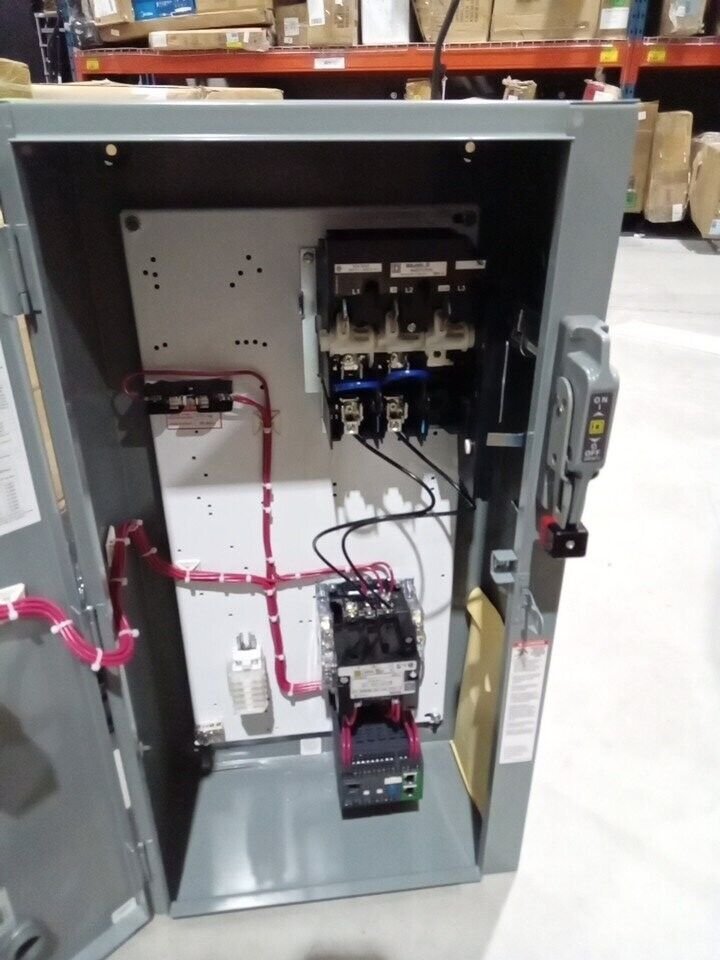

The Square D by Schneider Electric 8538SCG62V02S is a professional-grade Type S Combination Starter designed for the reliable control and protection of single-phase motors. This non-reversing unit integrates a 30A fusible disconnect switch and a magnetic starter into one compact NEMA 1 enclosure, providing an all-in-one solution for indoor electrical motor control.

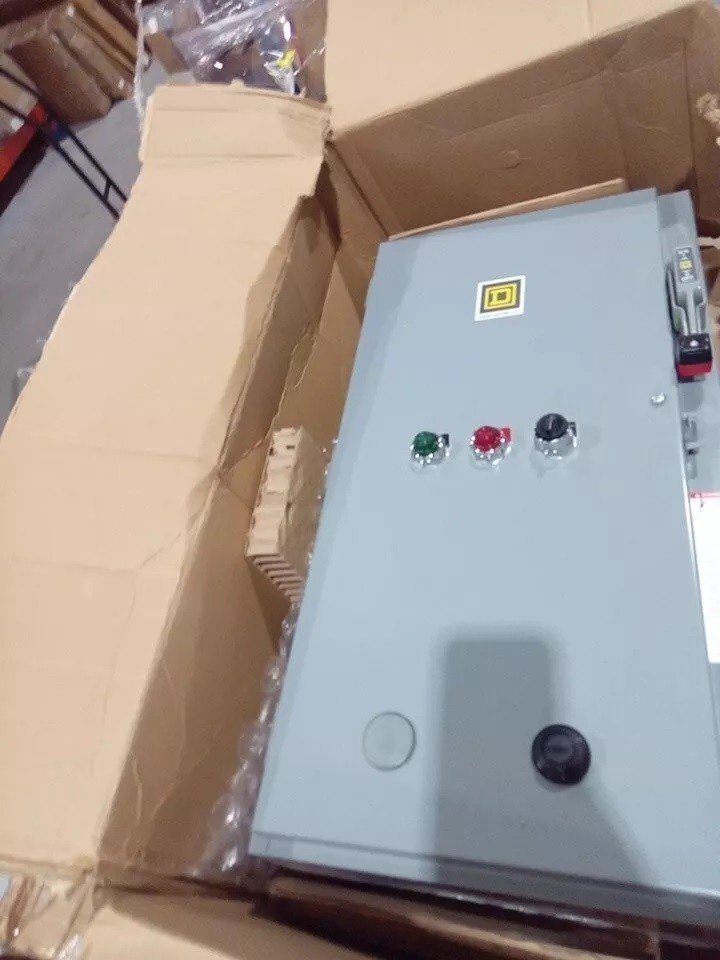

This unit is Open Box, meaning it is in 100% new, never-used condition, offering significant savings while maintaining industrial-level performance and safety.
Key Performance Features
Type S Industrial Design: Built to handle high-cycle industrial applications with the legendary reliability of the Square D Type S series.

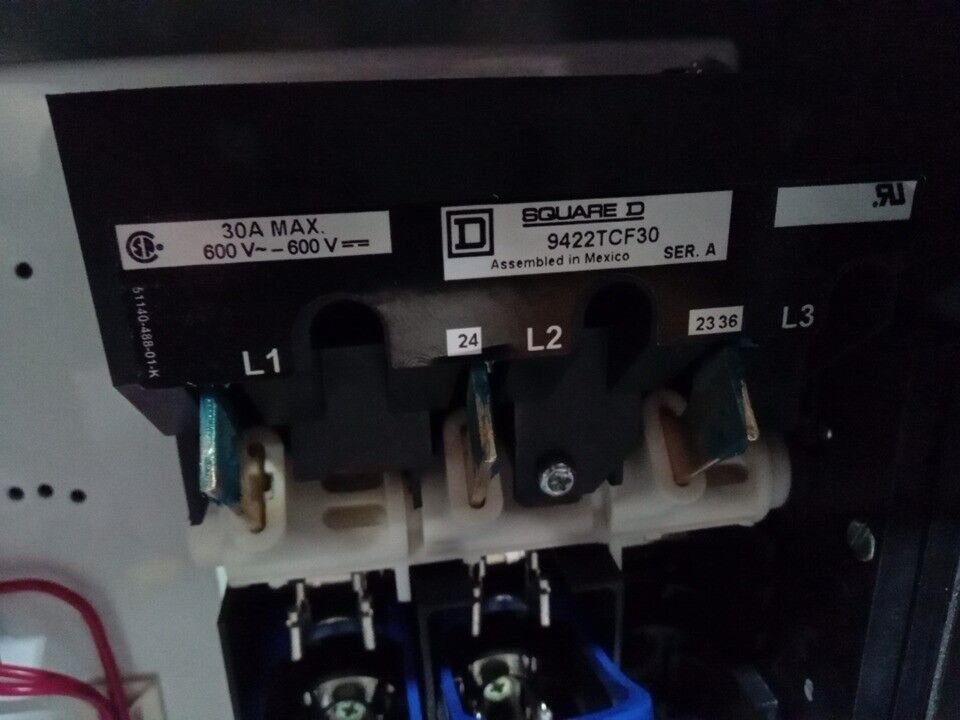

Integrated Safety: Features a built-in 30A fusible disconnect (Type H), providing a localized means of disconnecting power for maintenance and short-circuit protection.
Overload Protection: Equipped with a Melting Alloy 1 thermal overload system (heaters sold separately) to protect your motor from overheating and damage.

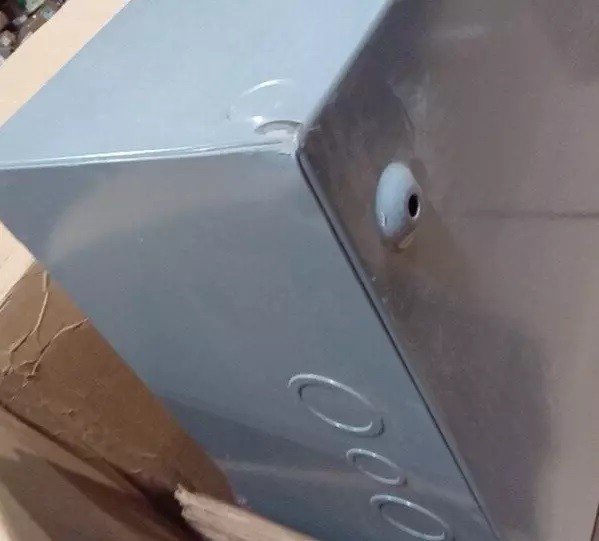

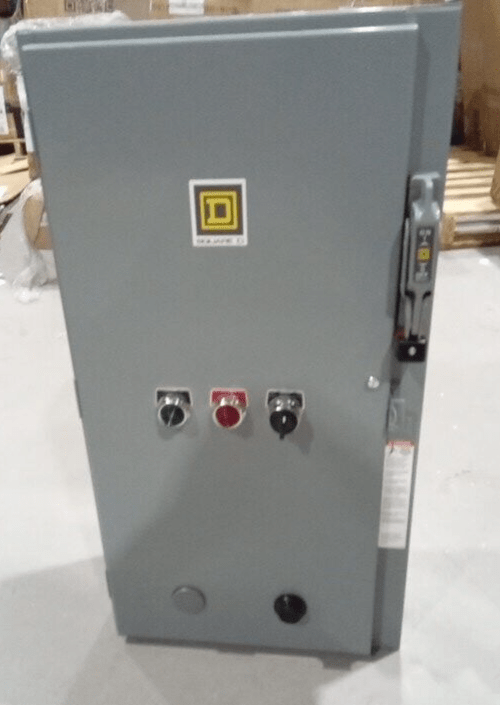

Heavy-Duty Enclosure: Housed in a NEMA 1 painted sheet steel enclosure designed for indoor environments, complete with an external reset button.
Single Phase Power: Optimized for 120VAC single-phase operation, rated for up to 2 HP.
Technical Specifications
| Specification | Details |
| Manufacturer | Square D (Schneider Electric) |

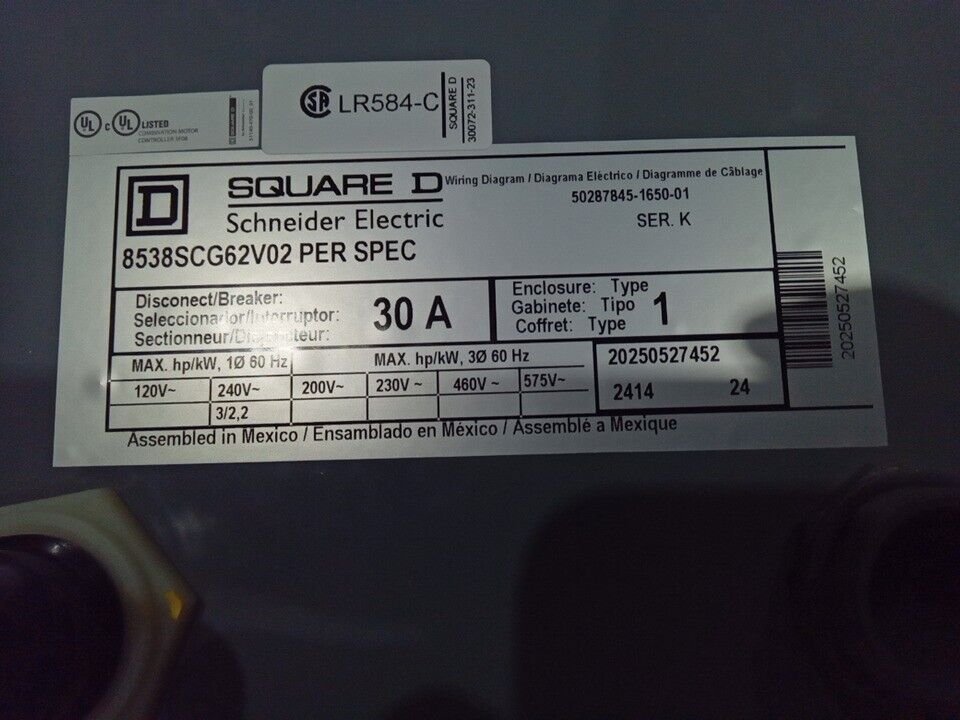

| Model Number | 8538SCG62V02S |
| NEMA Size | Size 1 |
| Phase / Poles | Single Phase / 2-Pole |
| Horsepower Rating | 2 HP @ 120 V AC |
| Control Circuit Voltage | 120 V AC (60 Hz) / 110 V AC (50 Hz) |
| Disconnect Type | 30A Fusible Switch (Class H) |
| Max Voltage Rating | 600 V AC |
| Enclosure Type | NEMA 1 (Indoor) |
| Weight | 30.03 lb (13.62 kg) |
Ideal Applications
Industrial Exhaust Fans: Reliable on/off control with high-voltage protection.
Conveyor Systems: Integrated disconnect for safety and easy maintenance.
Pumping Stations: Ideal for small single-phase pump motors requiring a magnetic starter.
Machinery Control: Professional-grade motor protection for workshop or factory tools.
