Oriental Motor 90W Reversible AC Motor (5RK90GE-CW3)
The Oriental Motor 5RK90GE-CW3 is a high-performance 90W (1/8 HP) AC motor engineered specifically for applications requiring frequent and instantaneous directional changes.1 Unlike standard induction motors, reversible motors feature a built-in friction brake mechanism that minimizes overrun and allows for rapid switching between clockwise and counter-clockwise rotation.2
This Pinion Shaft model is designed to be paired with a gearhead, allowing you to customize the output speed and torque to meet your specific automation needs.3
Key Performance Features
Instantaneous Reversibility: Optimized for high-cycle applications where the motor must stop and reverse directions immediately.
High Torque Density: Provides a robust 90W of output power in a compact frame size, ideal for space-constrained industrial machinery.
inion Shaft Design: Integrated pinion allows for seamless mounting to Oriental Motor “GE” type gearheads for significant torque multiplication.
Thermal Protection: Rated for Class B insulation (130C), ensuring reliability during continuous or high-frequency operation.

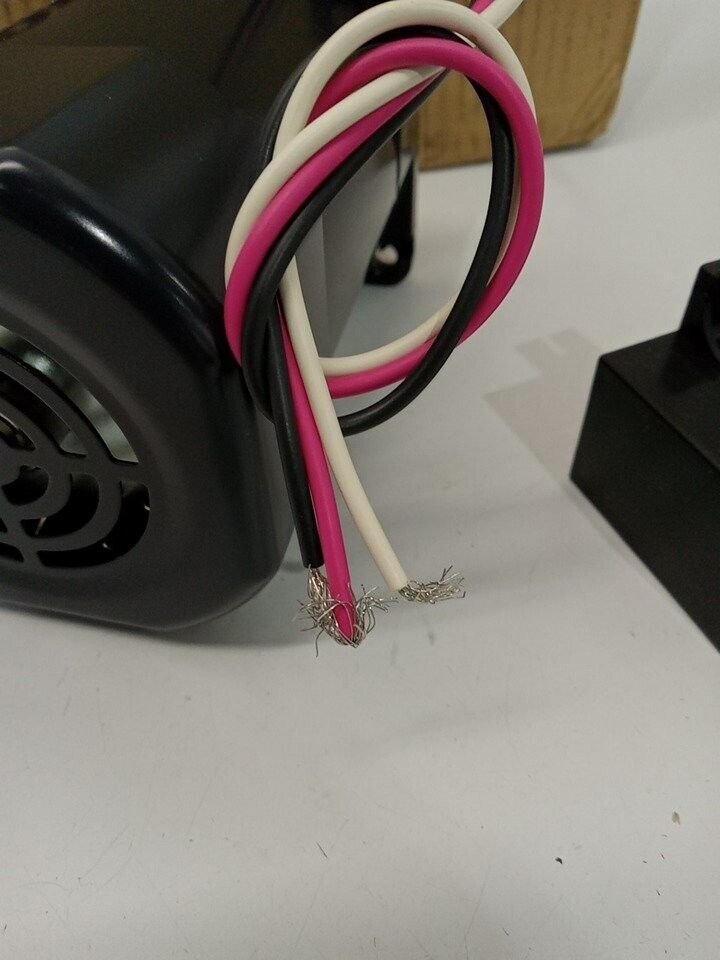

Lead Wire Connection: Features a simple lead wire configuration for straightforward integration into control panels.

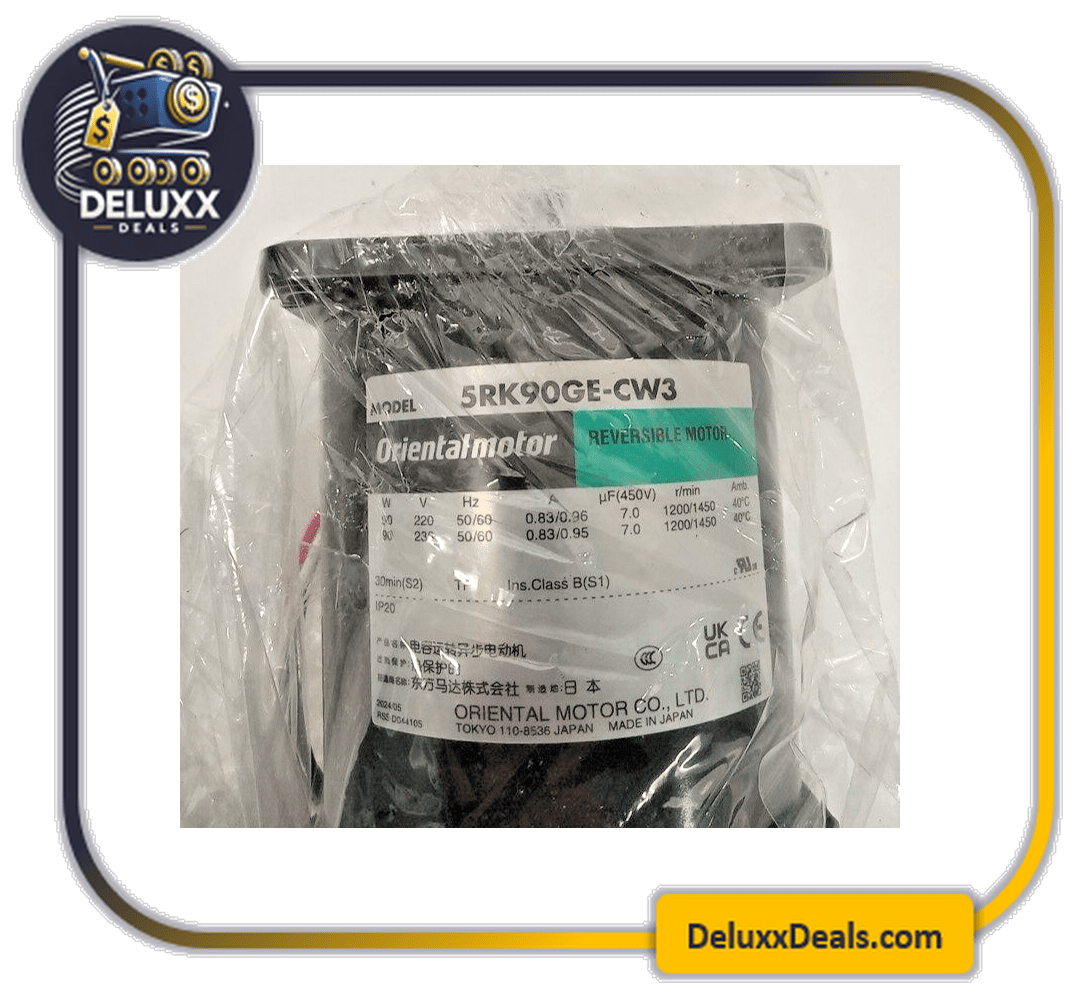

Technical Specifications
| Specification | Details |
| Manufacturer | Oriental Motor |
| Model Number | 5RK90GE-CW3 |
| Motor Type | Reversible AC Motor |
| Output Power | 90 W (1/8 HP) |
| Voltage | Single-phase 220/230 VAC |
| Current / Frequency | 0.83 A / 60 Hz |
| Shaft Type | Pinion Shaft (Requires Gearhead) |
| Insulation Class | Class B (266F / 130C) |
| Compliance | RoHS Compliant |
Application & Setup
Gearhead Integration: This motor must be combined with a gearhead to operate. It is compatible with Oriental Motor’s linear heads for converting rotation into precise linear movement.8
Reversing Control: Directional changes are achieved by swapping the wires leading to the starter winding, typically via a simple switch or relay setup.9
Installation: To ensure maximum longevity, install in a well-ventilated environment to maintain an ambient temperature between -10C and 40C.
