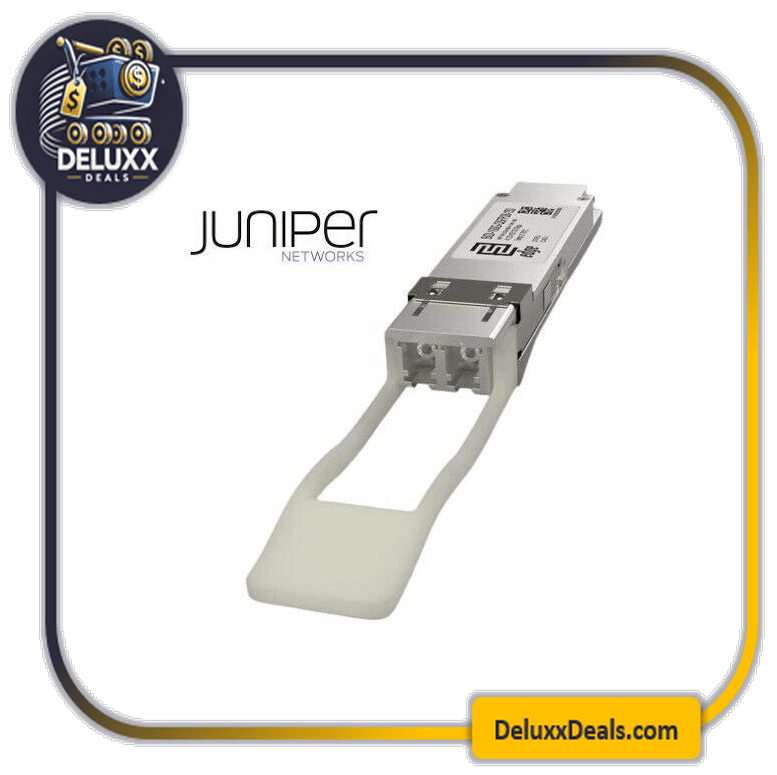

🌐 Juniper JNP-QSFP-100G-BXSR Compatible Transceiver
The Juniper JNP-QSFP-100G-BXSR compatible transceiver is a high-performance QSFP28 Bi-Directional (BIDI) optical module designed for high-density 100G Ethernet applications. By utilizing dual wavelengths (850nm and 900nm), this module enables 100Gbps transmission over a standard duplex LC multi-mode fiber, allowing you to reuse existing fiber infrastructure to achieve higher data rates.
Key Performance Features
Dual Rate Versatility: Fully supports both 40Gb/s and 100Gb/s bit rates, making it an ideal choice for networks in transition.
Efficient Fiber Usage: The BiDi design integrates four electrical data lanes into two optical lanes, communicating over a 2-fiber duplex LC multi-mode cable.
Advanced Engineering: Powered by industry-leading Broadcom chips and utilizing PAM4 modulation for superior signal integrity.
Extended Reach: Reliable data transmission up to 100 meters on multi-mode fiber (MMF).
Real-Time Monitoring: Includes DDM (Digital Diagnostic Monitoring) support to track temperature, voltage, and optical power levels in real-time.

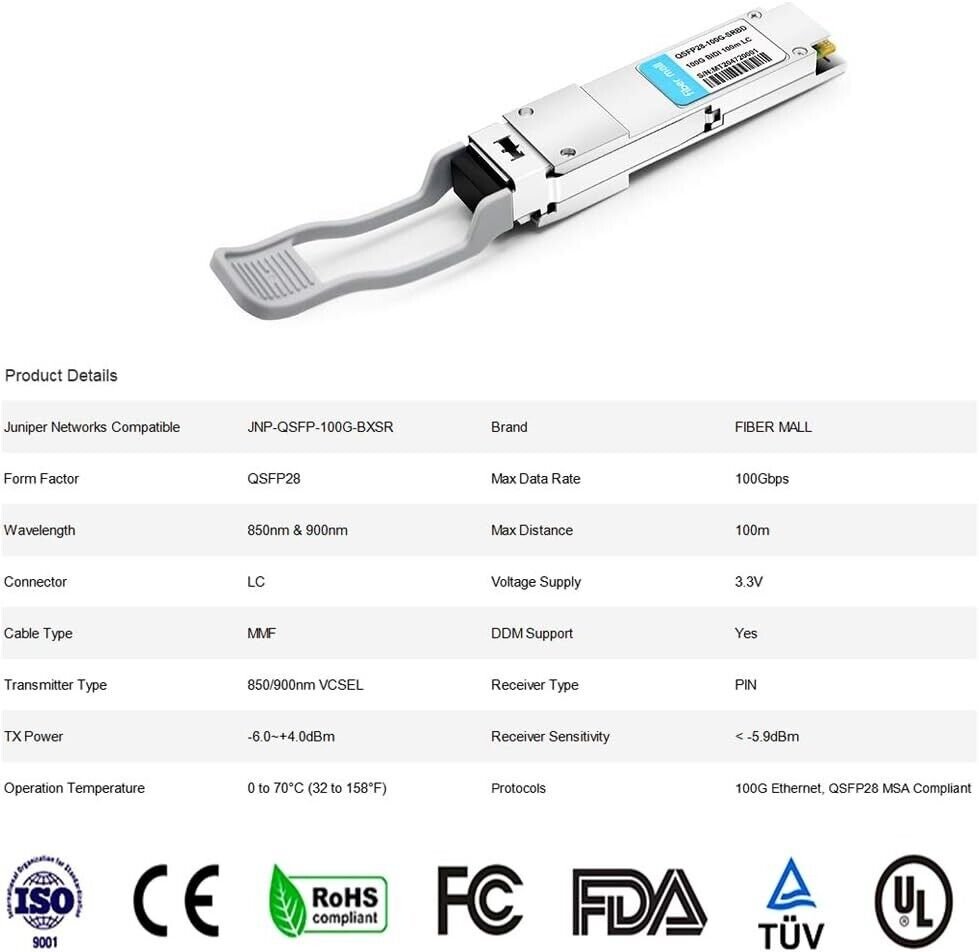

Technical Specifications
| Feature | Details |
| Form Factor | QSFP28 |
| Max Data Rate | 40Gbps / 100Gbps |
| Wavelength | 850nm & 900nm (BiDi) |
| Connector Type | Duplex LC |
| Transmitter Type | 850/900nm VCSEL |
| Max Distance | 100m (over OM4 MMF) |
| Compatibility | Juniper (JNP-QSFP-100G-BXSR) |
| Standard | QSFP28 MSA Compliant |
