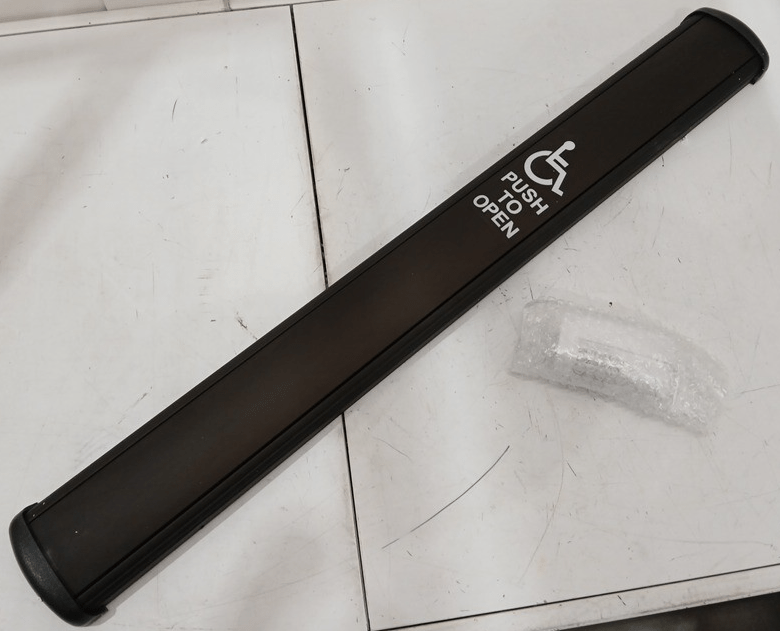

🚪 Camden CM-7436 Column Push Plate Switch (Black Anodized)
The Camden Door Controls CM-7436 is a premium 36-inch column switch designed to provide superior accessibility and convenience for automatic door systems.1 Finished in a sleek Black Anodized aluminum, this switch offers a modern aesthetic while serving as a highly functional “high/low” activation solution.2
By providing a continuous 36-inch activation surface, it eliminates the need for two separate switches, ensuring that everyone—including children and individuals using wheelchairs or mobility aids—can easily trigger the door from any height or angle.
Key Features
ADA & Building Code Compliant: Meets or exceeds North American accessibility standards, including the rigorous California building code (Section 1117B.6) requirements.3
Dual Redundant Switches: Features (2) fully redundant 15 Amp SPDT UL-listed switches, ensuring the door operates reliably even if one internal contact fails.4
Low-Profile Contoured Design: The sleek, curved shape allows for easy activation from side angles and reduces the risk of accidental snags.5
Rugged Construction: Built from heavy-duty solid aluminum with a durable black anodized finish, designed to withstand high-traffic commercial environments.

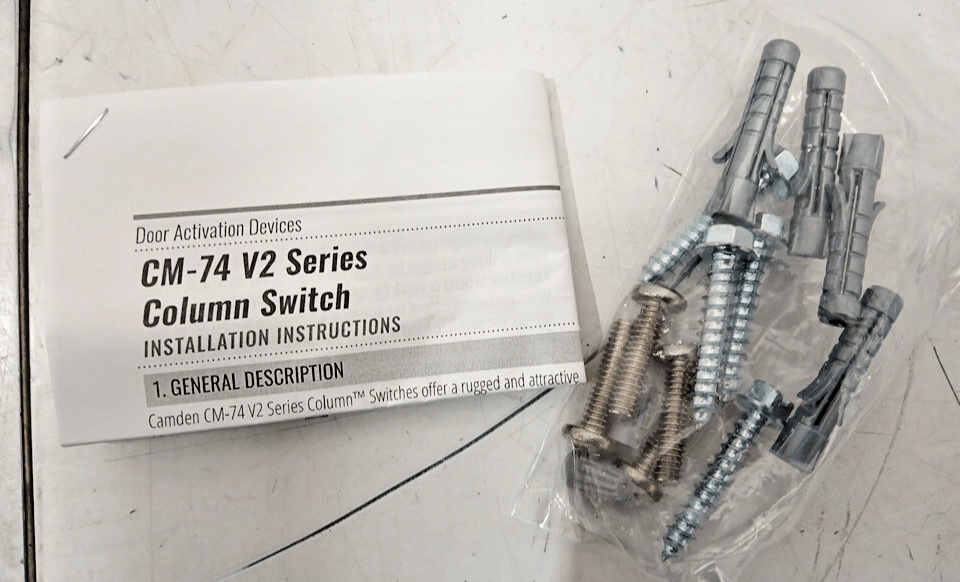

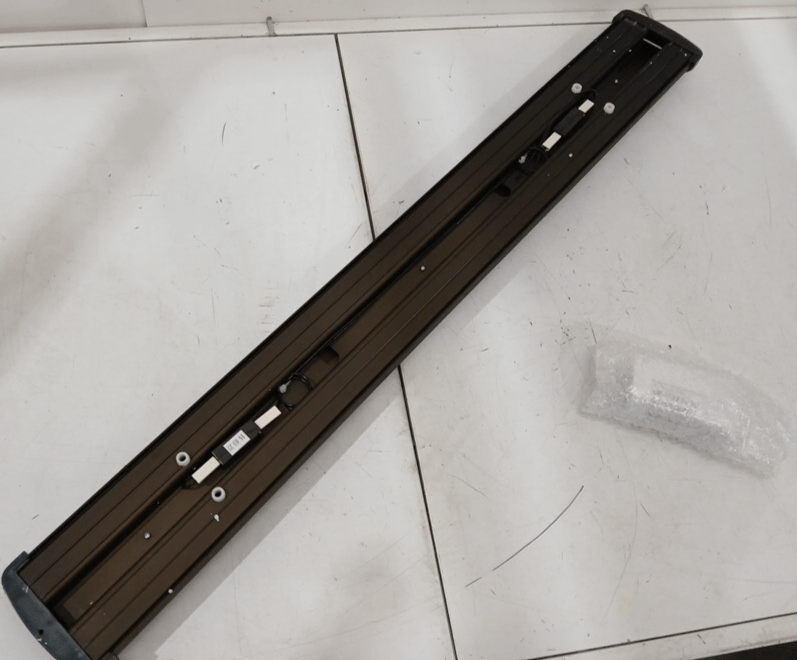

Installer Friendly: Includes adjustable leveling screws to ensure a flush, professional fit on uneven wall surfaces.6 No internal wires are exposed to moving parts, preventing wear and tear.7
Wireless Ready: Compatible with Lazerpoint RF™ wireless systems, featuring a dedicated internal space to “snap-in” a battery-powered transmitter.
Technical Specifications
| Specification | Details |
| Model | CM-7436 |
| Finish | Black Anodized |
| Height | 36 Inches (914 mm) |
| Switch Type | (2) SPDT Form ‘C’ |
| Contact Rating | 15 Amps @ 125/250 VAC |
| Construction | Heavy-Duty Extruded Aluminum |
| Mounting | Surface Mount |
Typical Applications
Hospitals & Care Facilities: Allows for hands-free or elbow activation to maintain hygiene.
Retail & Commercial Hubs: Modern black finish blends seamlessly with contemporary storefronts.
Educational Institutions: Ensures easy reach for students of all heights and abilities.
