Infranor Mavilor AC Servo Motor (FP-0023)
The Infranor Mavilor FP0023800099A7 is a high-performance, 3-phase synchronous AC servo motor designed for precision automation and motion control. Engineered for high power density and reliability, the FP series is a staple in robotics, CNC machinery, and packaging systems where rapid response and accurate positioning are vital.
This unit is Open Box condition, meaning it has never been put into service but does not include original retail packaging.
Key Performance Features
Precision Dynamics: Features a synchronous design that provides smooth rotation and high dynamic response at speeds up to 3000 RPM.
Rugged Environment Ready: With an IP65 rating, this motor is protected against dust ingress and low-pressure water jets, making it suitable for industrial shop floors.
Thermal Intelligence: Equipped with integrated thermal protection to prevent damage during high-duty cycle operations or unexpected stalls.
Industrial Durability: Features Insulation Class F, allowing it to operate safely at internal temperatures up to 155°C.
Technical Specifications
| Specification | Details |
| Manufacturer | Infranor / Mavilor |

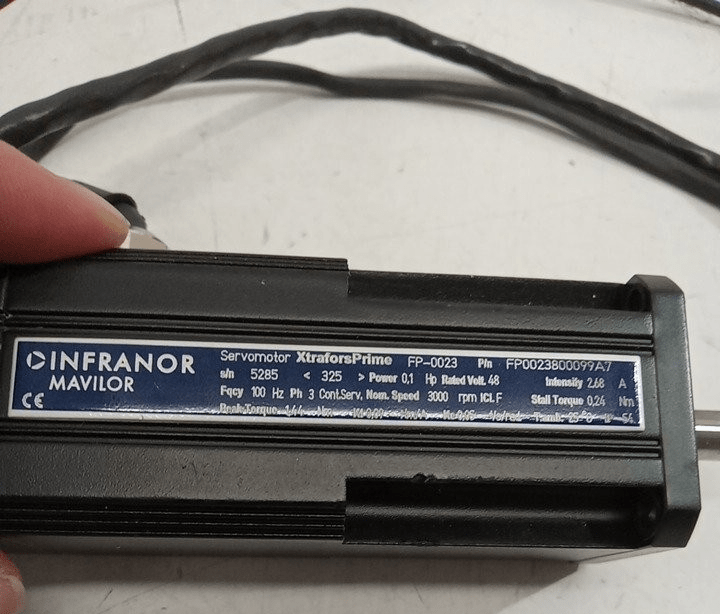

| Model / Type | FP0023800099A7 (FP-0023) |
| Motor Type | 3-Phase Synchronous AC |
| Nominal Speed | 3000 RPM |
| Nominal Torque | 240 mNm |
| Voltage (Delta / Star) | 230V AC / 400V AC |
| Current (Delta / Star) | 1.97A / 1.4A |
| IP Rating | IP65 |
| Mounting Style | Screw Type |
Application & Setup
Versatile Powering: This motor can be wired in a Delta configuration for 230V systems or a Star configuration for 400V systems, offering flexibility for different regional power standards or drive requirements.
Compact Design: The FP-0023 series is known for its compact footprint, allowing it to fit into tight mechanical assemblies without sacrificing torque performance.
