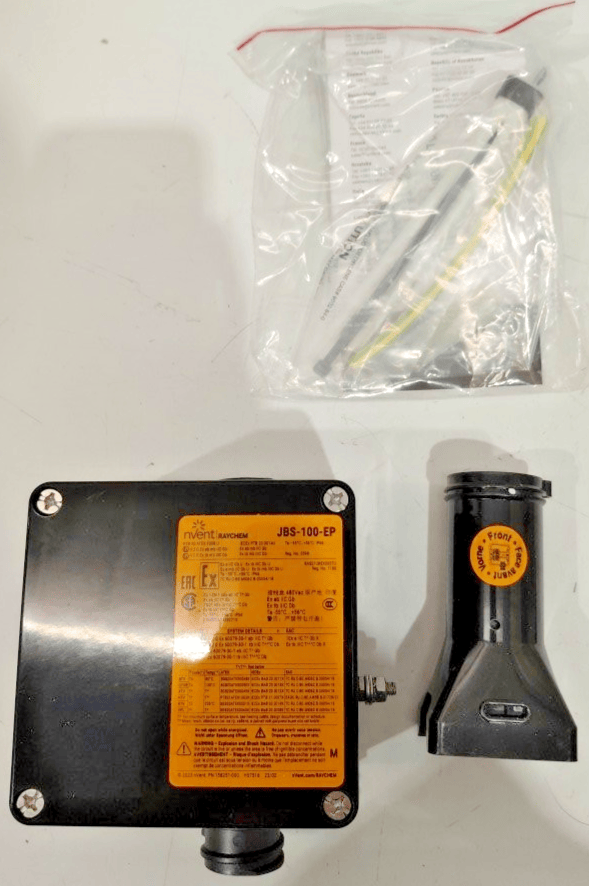

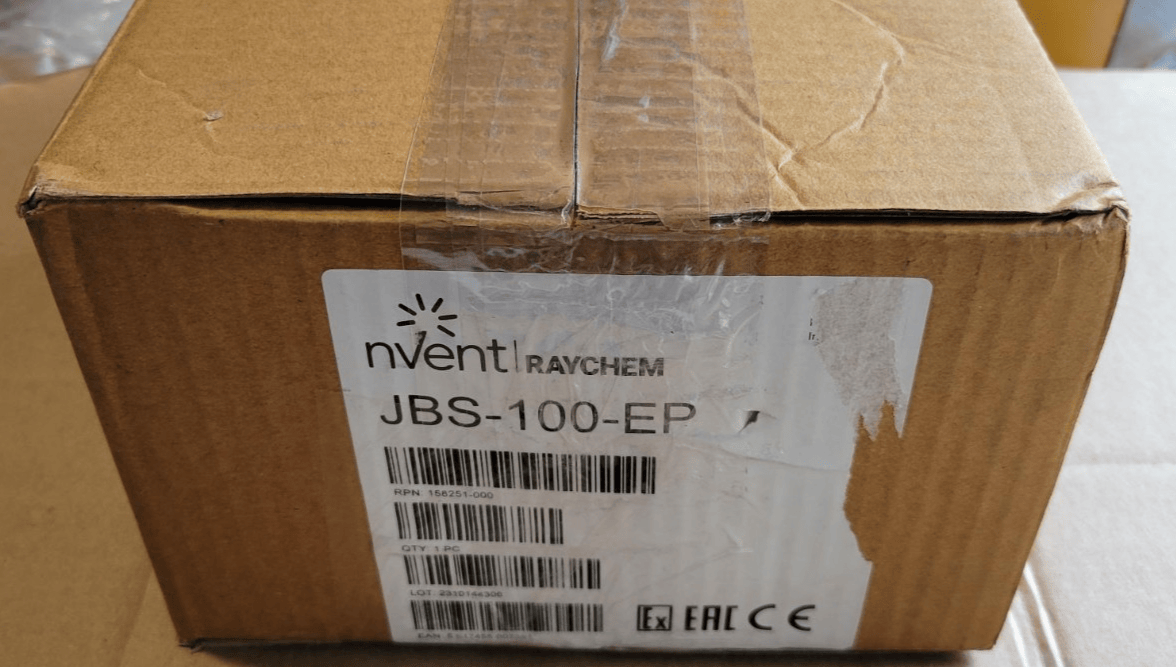

Raychem JBS-100 Integrated Junction Box (JBS-100-EP) – Single Entry Power Connection for nVent RAYCHEM Heat Trace Cable
Ensure safe, compliant, and efficient power connection for your industrial heat trace system with the Raychem JBS-100 Integrated Junction Box. This single-entry unit is a core component of the nVent RAYCHEM JBS-100 series, designed specifically for connecting electrical power to one industrial parallel heating cable while maintaining the integrity of the insulation and enclosure in demanding environments.
Designed for Single Entry and Universal Use
The JBS-100 series simplifies the process of bringing power to a single heating cable line, integrating multiple functions into one robust, reliable enclosure:
- Single Entry Connection: The JBS-100-EP model is a dedicated single-entry power connection junction box, designed for connecting power to one industrial parallel heating cable.
- Universal Compatibility: This junction box is suitable for use with all major nVent RAYCHEM self-regulating parallel heating cables, including BTV, QTVR, XTV, KTV, and VPL.

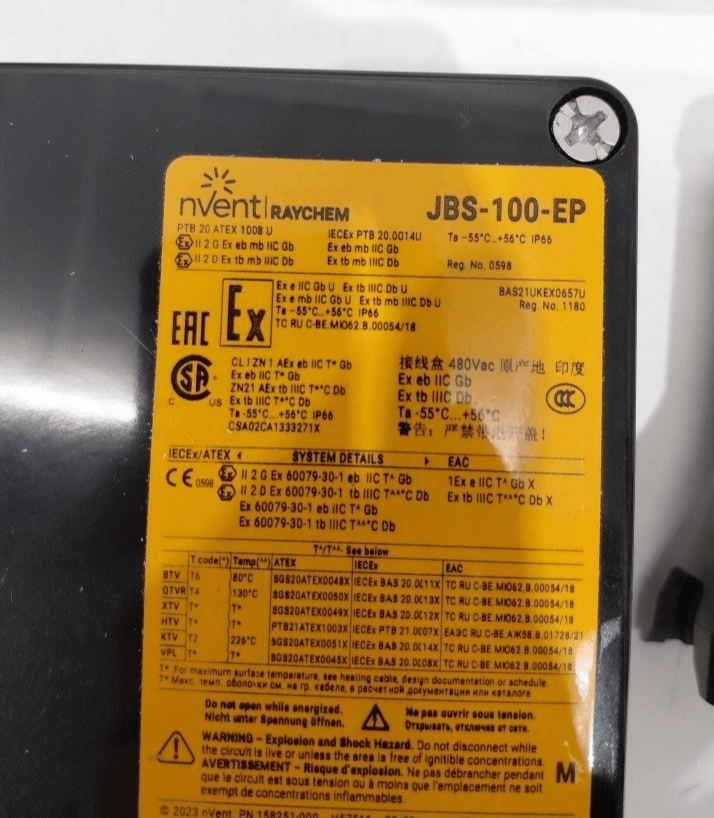

- Hazardous Area Approval: Crucially, the JBS-100 series is approved for use in both hazardous and non-hazardous areas, providing a versatile, compliant solution across various industrial installations.
Key Installation and Safety Features
The design of the JBS-100 prioritizes fast, safe installation without the need for specialized hot-work permits:
- Cold Applied System: Installation is completely cold applied, eliminating the need for heat guns or hot work permits, significantly enhancing site safety and reducing installation time.

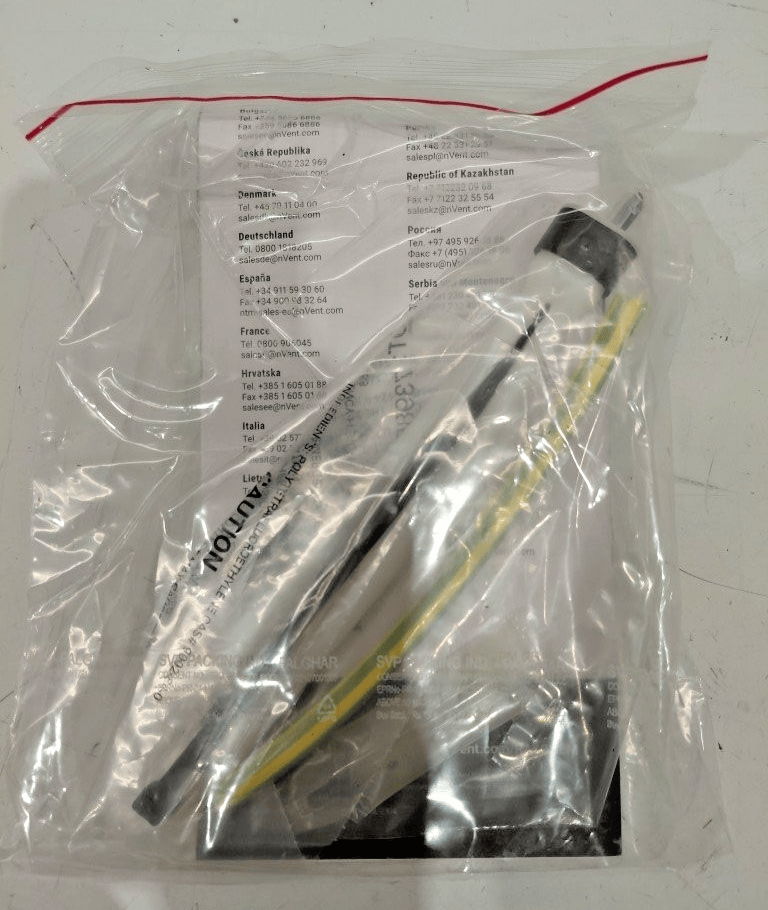

- Integrated Functions: The box integrates the functions of both the power connection kit and the insulation entry seal, providing a streamlined, simplified assembly.
- Durable Construction: Built with a rugged stand that protects the heating cable connection and accommodates up to 100 mm (4 inches) of thermal insulation, ensuring long-term mechanical protection.
- Reliable Sealing: Utilizes the nVent RAYCHEM core sealing boot with a reliable, non-curing sealant, guaranteeing a moisture-proof seal and avoiding the issues associated with traditional RTV silicone curing.
