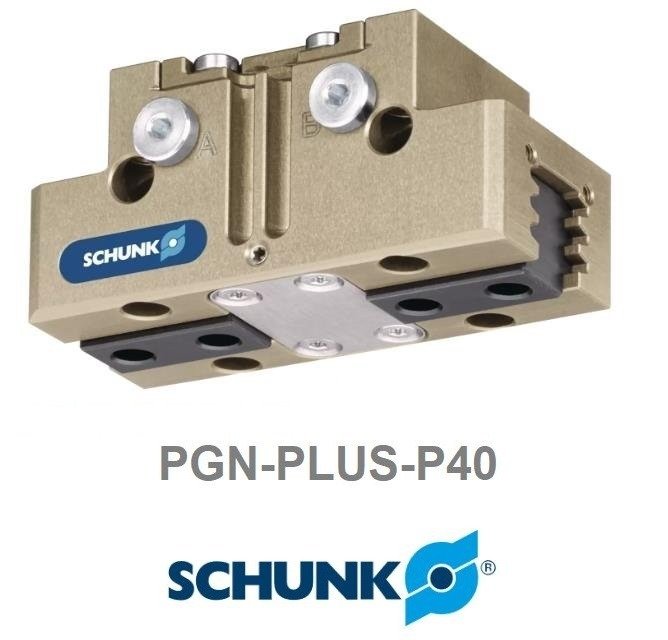

SCHUNK PGN-plus-P 40 Pneumatic Universal Gripper (ID 318448) – 180 N Closing Force, 0.015 s Speed, 2.5 mm Stroke
Maximize the speed and precision of your assembly and pick-and-place applications with the SCHUNK PGN-plus-P 40 Universal Gripper (ID 318448). This compact, high-performance pneumatic gripper is built by SCHUNK, guaranteeing superior quality and reliability in automated manufacturing environments. The PGN-plus-P series is the benchmark for durable, synchronized gripping solutions.
Rapid Cycle Performance and Precision
The Size 40 model is engineered for high-speed operation and reliable repeatability:
- High Speed: Achieves incredibly fast cycle times, with a Closing Time and Opening Time of just 0.015 seconds, maximizing throughput on production lines.
- Gripping Force: Delivers a nominal Closing Force of 180.0 N (Newtons). The force is guaranteed to reach its full listed capacity after a short run-in period (a few hundred cycles).
- High Precision: Boasts excellent Repeat Accuracy of 0.01 mm, essential for sensitive and consistent part handling.
- Stroke: Provides a Stroke per Jaw of 2.5 mm.
- Workpiece Capacity: Recommended maximum workpiece weight of 0.9 kg.
Detailed Technical Specifications
| Parameter | Value | Unit |
| Nominal Operating Pressure | 6.0 | bar |
| Min. / Max. Operating Pressure | 2.5 / 8.0 | bar |
| Weight | 0.08 | kg |
| Max. Finger Length | 65.0 | mm |
| Max. Ambient Temperature | 90.0 | °C |
| IP Protection Class | 40 | N/A |
| Max. Axial Force ($F_z$ max.) | 650.0 | N |
| Dimensions (L x W x H) | 50.0 x 25.0 x 24.7 | mm |
Condition and Assurance

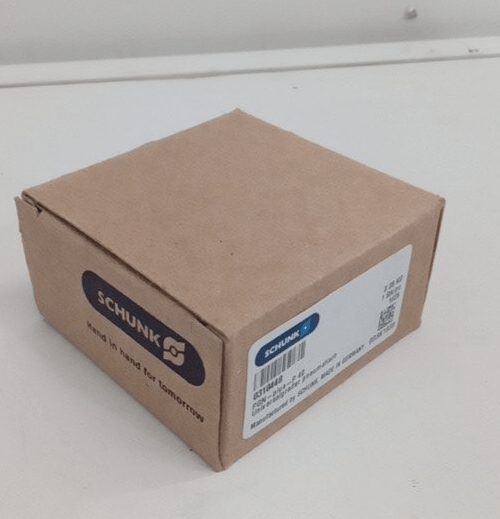

This SCHUNK PGN-plus-P 40 Gripper is offered in Open Box condition, confirming it is a brand new, unused component ready for immediate deployment in your automation system.
All duties are paid by DeluxxDeals. No surprise charges!
