Danfoss VLT AQUA Drive FC-202 (5.5 kW / 7.5 HP)
The Danfoss VLT AQUA Drive FC-202 is the industry standard for water and wastewater applications. Engineered to provide the lowest cost of ownership, this frequency converter is optimized for centrifugal pumps and blowers, offering advanced features like leakage detection, dry-run protection, and sleep mode to maximize energy savings.
This specific unit (Model: FC-202P5K5T4E20H2) comes equipped with an EtherNet/IP MCA 121 adapter, making it ready for high-speed industrial networking and seamless integration into modern PLC environments.
⚠️ Condition Note
Status: New (Never used).

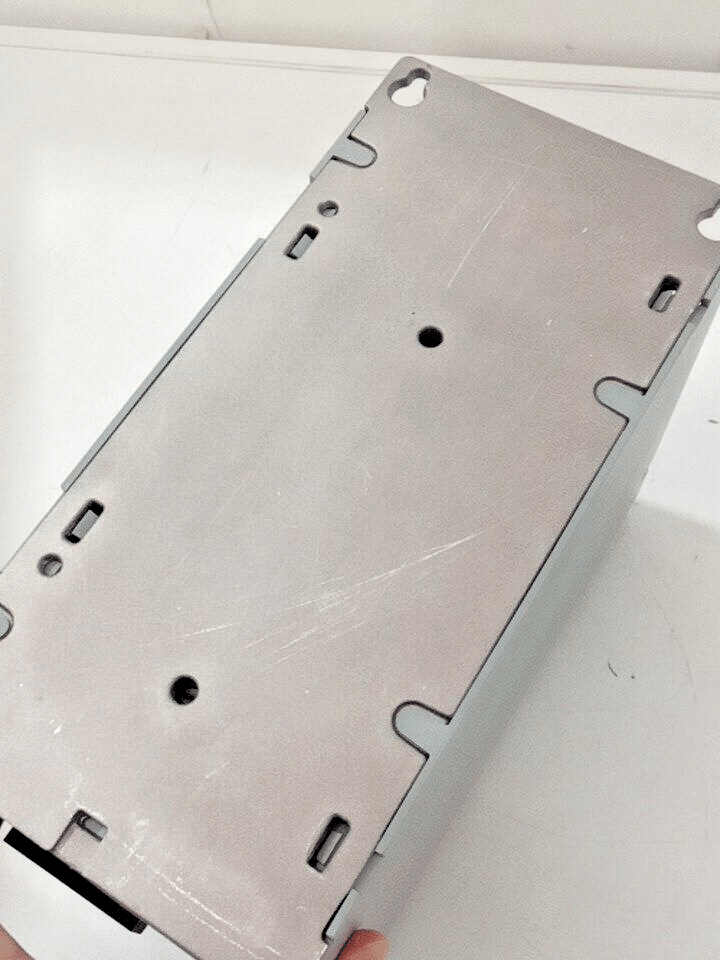

Cosmetic: The unit has a few scratches on the back plate. Please refer to the product pictures for a detailed view.
Functionality: 100% operational with the latest standard software release.
Key Performance Features
Water Application Dedicated: Specifically designed for pumps and fans with specialized software to prevent water hammer and reduce energy consumption.
Integrated Connectivity: Includes the MCA 121 EtherNet/IP option card for easy communication with Rockwell/Allen-Bradley systems and other industrial networks.

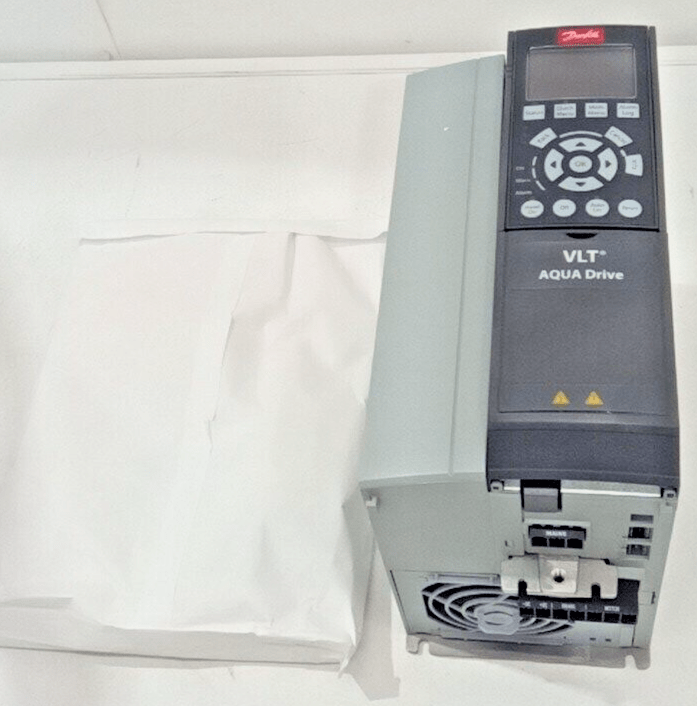

Graphical LCP: Features a high-resolution Graphical Local Control Panel for intuitive setup, manual control, and real-time monitoring.
Robust Design: Built in a compact A3 frame size with an IP20/Chassis rating, perfect for cabinet mounting.
Technical Specifications
| Feature | Details |
| Manufacturer | Danfoss |
| Model / Typecode | FC-202P5K5T4E20H2XGXXXXSXXXXANBXCXXXXDX |
| Power Rating | 5.5 kW / 7.5 HP |
| Mains Voltage | 3-Phase 380 – 480 VAC |
| Continuous Current | 13A (at 400V) / 11A (at 460V) |
| Enclosure Rating | IP20 / Chassis (Frame A3) |
| RFI Filter | H2 Filter included |
| Communication | EtherNet/IP (MCA 121) |
| Dimensions (HxWxD) | 268mm x 130mm x 220mm |
| Net Weight | 6.04 kg |
All duties are paid by DeluxxDeals. No surprise charges!
Electrical & Thermal Data
Efficiency: Low power loss of only 187W at nominal operation.
Overload Capacity: * Normal Overload (NO): 110% for 60 seconds.
High Overload (HO): 150% for 60 seconds (19.5A intermittent).
Environment: Designed for global use (GLBL Standard) with a wide input voltage tolerance.
